| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

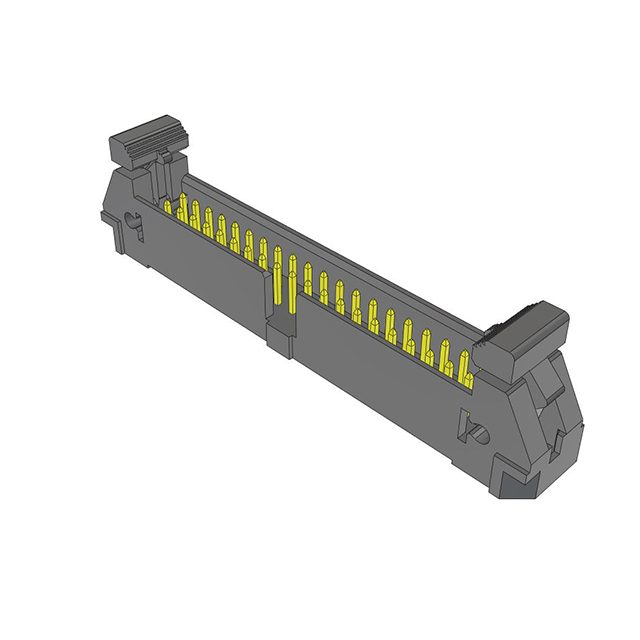

The Samtec EJH-120-01-L-D-RA is a 40-position, 2-row, 2.54mm pitch shrouded header connector designed for board-to-cable/wire applications. It features a right-angle through-hole mounting style with solder termination, making it suitable for perpendicular connections on PCBs.
This connector uses phosphor bronze square pins with a tin contact finish (10.0µin) and a liquid crystal polymer (LCP) black insulator. The 4-wall shrouding with latch lock/eject hooks provides secure mating and reliable retention. A keying slot is included for polarization.
Rated for 3A current and an operating temperature range of -55°C to 125°C, this header is suitable for a variety of industrial and commercial applications requiring a robust, polarized connection.
The pitch is 2.54mm.
It has 40 positions arranged in 2 rows.
The current rating is 3A.
It is a through hole, right angle mounting type with solder termination.
The operating temperature range is -55°C to 125°C.
