| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16 pcs
|
16 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

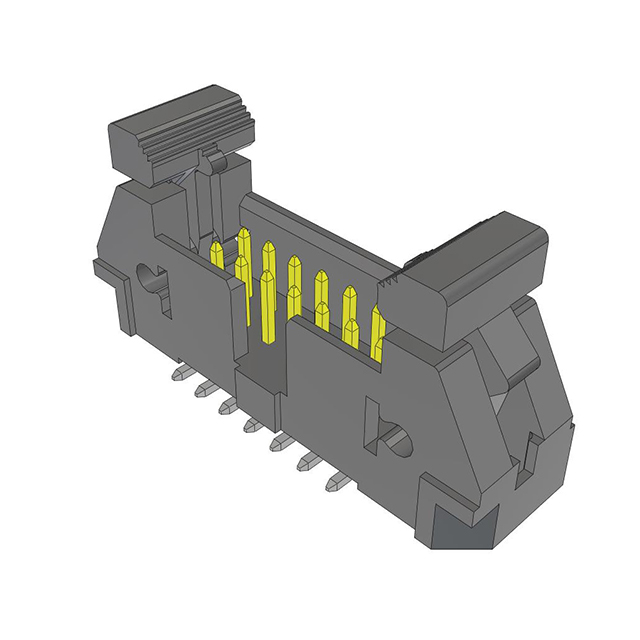

The EJH-107-01-F-D-SM-LC is a 14-position shrouded header from Samtec's EJH series. It features two rows of male pins on a 2.54mm pitch with a row spacing of 2.54mm. The connector is designed for board-to-cable/wire applications and uses surface mount solder termination.
Key electrical specifications include a current rating of 3A per contact. The contacts are made of phosphor bronze with a tin finish (3.00µin thickness). The housing is black liquid crystal polymer (LCP) with an insulation height of 12.70mm. The connector includes a latch lock/eject hook fastening system and features board lock and keying slot for secure mating.
The operating temperature range is -55°C to 125°C, suitable for a wide range of environments. The part is RoHS3 compliant and REACH unaffected, with an MSL rating of 1 (unlimited floor life).
14 positions, all loaded, in 2 rows.
2.54mm (0.100") pitch with 2.54mm row spacing.
3A per contact.
Surface mount (SMD) with solder termination.
-55°C to 125°C.
Tin, 3.00µin (0.076µm) thickness.
