| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13 pcs
|
13 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actual Diameter | |
| Connector Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Gender | |
| Industry Recognized Mating Diameter | |
| Internal Switch(s) | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Shielding | |
| Termination | |
| Termination Type | |
| Voltage | |
| Voltage Rating |

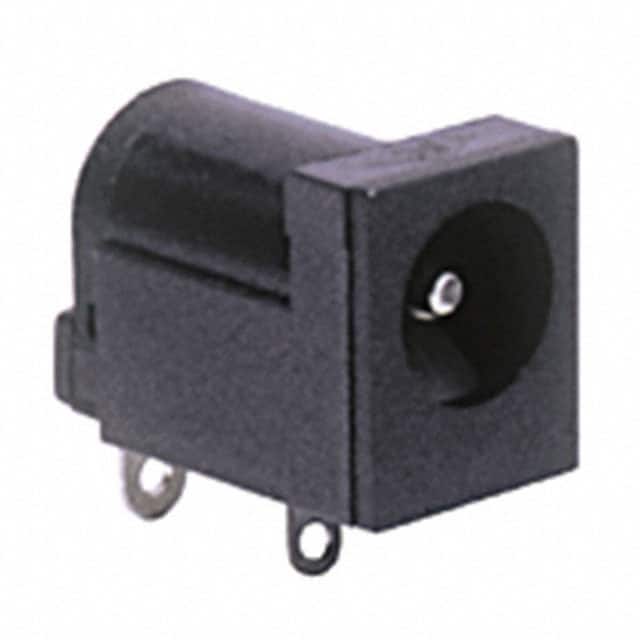

The EJ508A is a male power jack connector manufactured by MPD (Memory Protection Devices). It is designed for use with a standard 2.10mm ID and 5.50mm OD mating plug. The connector has an actual center pin diameter of 2.00mm.
This connector is rated for 5A of current and 12VDC, making it suitable for low-power DC applications. It includes a single normally closed internal switch. The operating temperature range is -15°C to 90°C.
The EJ508A features a through hole, right angle mounting configuration with solder eyelet termination. It is unshielded and has 2 conductors with 3 contacts.
The industry recognized mating diameter is 2.10mm ID and 5.50mm OD.
The current rating is 5A and the voltage rating is 12VDC.
The mounting type is through hole, right angle.
Yes, it has a single normally closed internal switch.
The operating temperature range is -15°C to 90°C.
The termination type is solder eyelet(s).
