| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

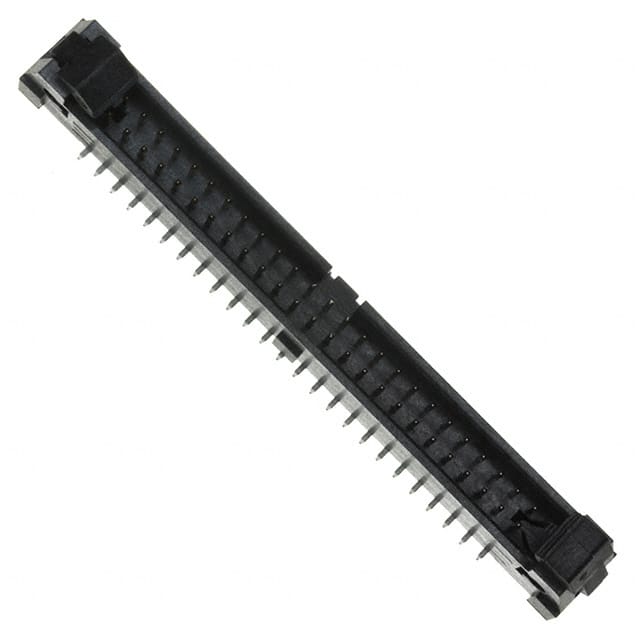

The Samtec EHT-125-01-S-D-SM-LC is a 50-position, 2-row shrouded header from the EHT series. It features a 2.00mm pitch and 2.00mm row spacing, designed for board-to-cable/wire applications. The connector uses surface mount termination with solder contacts made of phosphor bronze with a tin finish (0.76µm thickness). The housing is black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. It includes board lock and keying slot features for secure mounting and alignment. The operating temperature range is -55°C to 125°C, and the current rating is 3A. The connector is shrouded with 4 walls and uses latch lock/eject hooks for fastening.
The pitch is 2.00mm.
It has 50 positions arranged in 2 rows.
The current rating is 3A.
Surface mount with solder termination.
-55°C to 125°C.
Yes, it is shrouded with 4 walls and includes latch lock/eject hooks.
The insulation is black liquid crystal polymer (LCP) with a UL94 V-0 rating.
