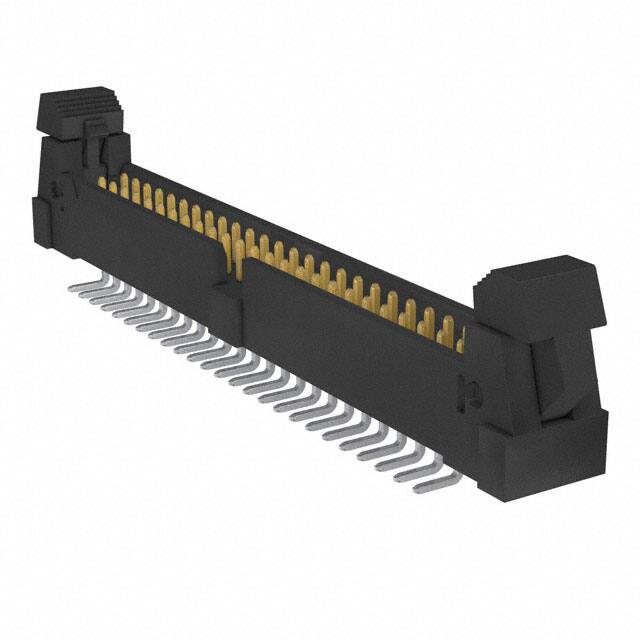

The Samtec EHT-125-01-S-D-SM-K is a 50-position, 2-row, 2.00mm pitch shrouded header designed for board-to-cable/wire applications. This surface mount connector features a 4-wall shroud with latch lock/eject hooks for secure mating with compatible TCSD series cable assemblies.
Electrical and mechanical specifications include a 3A current rating per contact, an operating temperature range of -55°C to +125°C, and a UL94 V-0 flammability rating. Contacts are made of phosphor bronze with 30.0µin gold plating, and the insulator is black liquid crystal polymer (LCP).
The connector includes a keying slot for polarization and a polyimide film pick-and-place pad for automated assembly. It is lead-free solderable and has a maximum SMT lead coplanarity of 0.10mm. The part is supplied in tape and reel packaging for surface mount processing.
| Qty | Low | High |
|---|---|---|
| 1+ | $57.11 | $57.11 |
| 200+ | $22.79 | $22.79 |
| 496+ | $22.03 | $22.03 |
| 1,000+ | $21.65 | $21.65 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 50 positions arranged in 2 rows.
The pitch is 2.00mm (0.079 inches).
The current rating is 3A per contact.
The operating temperature range is -55°C to +125°C.
It is a surface mount (SMD) connector with solder termination.
Contacts are phosphor bronze with 30.0µin (0.76µm) gold plating.
Yes, it is listed as RoHS3 compliant and lead-free solderable.
