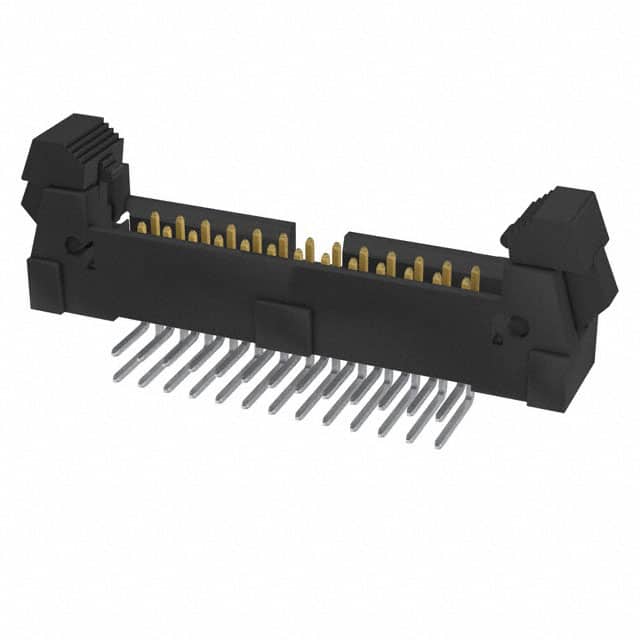

This is a 2.00mm pitch shrouded IDC ejector box header from Samtec's EHT series. It features 26 positions arranged in 2 rows, with a right-angle through-hole termination style. The connector is designed for board-to-cable wire applications, providing a secure connection with latch lock/eject hooks and a keying slot for polarization.
Key specifications include a current rating of 3A per contact, an operating temperature range of -55°C to 125°C, and a UL94 V-0 flammability rating for the liquid crystal polymer (LCP) insulation. The mating contact finish is 30µin gold over tin, ensuring reliable corrosion resistance, while the post contact finish is tin. The contact material is phosphor bronze with square pins.
The header is fully shrouded on all four sides, providing protection and alignment for mating with the TCSD series IDC socket cable assemblies. The connector is packaged in tubes with 14 units per tube. It is RoHS3 compliant, REACH compliant with no SVHCs, and halogen-free per JS-709C. Note: California Proposition 65 warning for nickel content.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.67 | $10.67 |
| 2+ | $116.45 | $116.45 |
| 10+ | $10.40 | $10.40 |
| 14+ | $15.60 | $15.60 |
| 20+ | $111.84 | $111.84 |
| 28+ | $14.77 | $14.77 |
| 50+ | $109.60 | $109.60 |
| 56+ | $13.44 | $13.44 |
| 100+ | $107.41 | $107.41 |
| 112+ | $11.32 | $11.32 |
| 504+ | $9.66 | $9.66 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
26 positions.
2.00mm (0.079 inches).
3A per contact.
Through hole, right angle.
-55°C to 125°C.
Mating contact finish is 30µin gold over tin; post finish is tin.
Tube packaging with 14 parts per package.
