EHT-110-01-S-D-SM-P-TR Samtec EHT series 20-position, 2-row shrouded header with male pins, surface mount termination, and 2.00mm pitch.
Mfr Part #:

EHT-110-01-S-D-SM-P-TR

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec EHT series 20-position, 2-row shrouded header with male pins, surface mount termination, and 2.00mm pitch.
✓ Total Stock: 33 pcs

EHT-110-01-S-D-SM-P-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Innova Technologies ✓
Non-Authorised Inventory information
33 pcs
On Request
33 pcs On Request 1 On Request On Request 19+ / 16+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EHT-110-01-S-D-SM-P-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Termination
Termination Style
View Similar Products (0)

EHT-110-01-S-D-SM-P-TR Description

Short technical summary and product information.

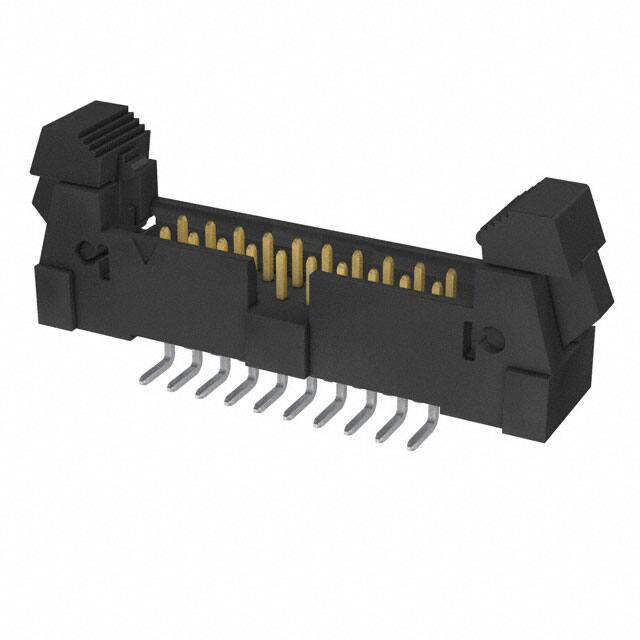

The Samtec EHT-110-01-S-D-SM-P-TR is a 20-position, 2-row shrouded header from the EHT series. This male pin connector features a 2.00mm pitch and row spacing, with a surface mount (SMT) termination style and solder contacts. The header is fully shrouded with a 4-wall design and includes latch lock/eject hooks for secure mating.



Key specifications include a current rating of 3A per contact, an operating temperature range of -55°C to 125°C, and a UL94 V-0 flammability rating for the black liquid crystal polymer (LCP) insulator. The contacts are made of phosphor bronze with a contact length of 3.05mm, and the part includes pick-and-place capability and a keying slot.



This connector is designed for board-to-cable/wire applications and is provided in tape and reel packaging for automated assembly. The part is lead-free solderable and has an MSL rating of 1 (unlimited).

EHT-110-01-S-D-SM-P-TR Quick Information

Product Type: Rectangular Connector Header
Canonical Name: Samtec EHT Series 20 Position 2 Row Shrouded Header, Surface Mount, Male Pin
Subcategory: Shrouded Header

EHT-110-01-S-D-SM-P-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

EHT-110-01-S-D-SM-P-TR Features

  • 20 position 2 row shrouded header.
  • 2.00mm pitch surface mount connector.
  • Rated for 3A current per contact.
  • Operating temperature range -55°C to 125°C.
  • Includes latch lock and pick-and-place pad.

EHT-110-01-S-D-SM-P-TR Applications

  • Board-to-cable wire harness connections.
  • Internal power and signal interconnects.
  • Automated pick-and-place assembly systems.
  • Enclosed electronics requiring secure latching.

EHT-110-01-S-D-SM-P-TR FAQs

4 frequently asked questions generated from this part’s specifications.
What is the pitch of the EHT-110-01-S-D-SM-P-TR?

The pitch is 2.00mm (0.079") with the same row spacing.

What is the current rating of this connector?

The current rating is 3A per contact.

What is the mounting type for this header?

It is surface mount (SMT) with solder termination.

How many positions does the EHT-110-01-S-D-SM-P-TR have?

It has 20 positions in 2 rows, all positions loaded.
