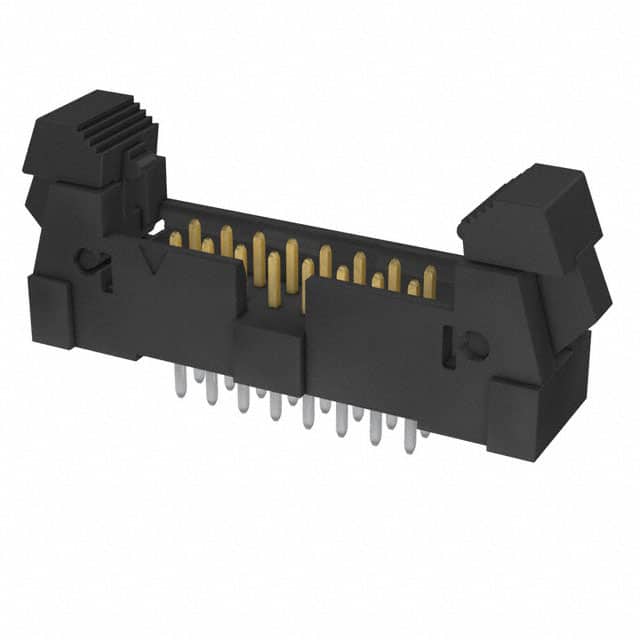

EHT-108-01-S-D Samtec EHT-108-01-S-D is a 16-position, 2mm pitch shrouded header with male pins, through hole termination. It features a latch lock and keying slot, rated for 3A and operating from -55°C to 125°C.
Mfr Part #:

EHT-108-01-S-D

Available from 2 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec EHT-108-01-S-D is a 16-position, 2mm pitch shrouded header with male pins, through hole termination. It features a latch lock and keying slot, rated for 3A and operating from -55°C to 125°C.
✓ Total Stock: 10 pcs

EHT-108-01-S-D Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
9 pcs
On Request
9 pcs On Request 1 On Request On Request On Request On Request On Request
Chanetech ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EHT-108-01-S-D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Termination
Termination Style
View Similar Products (0)

EHT-108-01-S-D Description

Short technical summary and product information.

The Samtec EHT-108-01-S-D is a 16-position, 2-row, 2.00mm pitch header connector designed for board-to-cable/wire applications. It features a shrouded 4-wall design with latch lock/eject hooks for secure mating. The connector uses male square pins made of phosphor bronze with a tin finish (30µin). The insulator is black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating.



This header is through-hole mounted with solder termination, offering a contact length of 3.05mm and an insulation height of 9.40mm. It is rated for 3A current and operates over a temperature range of -55°C to 125°C. The part includes a keying slot feature for polarization. It is RoHS3 compliant and MSL 1.



The EHT series mates with TCSD and TCMD cable assemblies (with strain relief). It is suitable for applications requiring reliable, high-density interconnections in industrial, automotive, and consumer electronics. The robust design ensures durability and secure connections.

EHT-108-01-S-D Quick Information

Product Type: Header, Male Pins
Series: EHT
Canonical Name: Samtec EHT Series Header, 16 Position, 2mm Pitch, Through Hole, Male Pin
Subcategory: Male Pins

EHT-108-01-S-D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EHT-108-01-S-D Features

  • Shrouded 4-wall design for secure mating.
  • Latch lock/eject hooks for retention.
  • 16 positions in 2 rows with 2mm pitch.
  • Rated for 3A current.
  • Operating temperature -55°C to 125°C.

EHT-108-01-S-D Applications

  • Ideal for board-to-cable interconnections.
  • Used in industrial control systems.
  • Suitable for automotive electronics.
  • Applicable in consumer device wiring.

EHT-108-01-S-D FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the EHT-108-01-S-D have?

16 positions.

What is the pitch of this header?

2.00mm (0.079").

What is the current rating?

3A.

What is the mounting type?

Through hole.

What is the operating temperature range?

-55°C to 125°C.

What is the insulation material?

Black Liquid Crystal Polymer (LCP) with UL94 V-0 rating.

Does this part have a keying feature?

Yes, it includes a keying slot.
