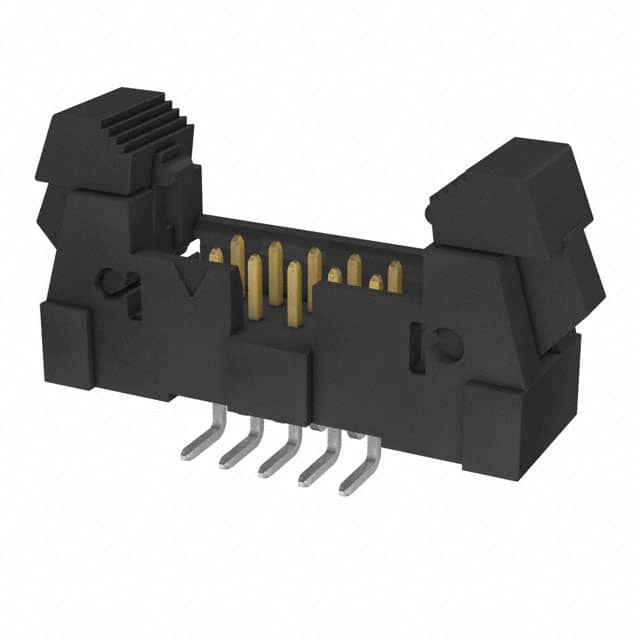

The Samtec EHT-105-01-S-D-SM is a 10-position, 2-row, 2.00mm pitch shrouded header designed for board-to-cable/wire applications. It features a surface mount termination with solder, a 4-wall shrouded housing with latch lock/eject hooks for secure mating, and a keying slot for polarization. The contacts are made of phosphor bronze with a 30µin tin plating. The insulator is black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. Electrical rating is 3A per contact, and the operating temperature range is -55°C to 125°C. This header mates with Samtec's TCSD series cable assemblies. The SMT lead coplanarity is 0.10mm max, and the part is lead-free solderable.
This header has 10 positions.
The pitch is 2.00mm (0.079 inches).
The current rating is 3A per contact.
The mounting type is surface mount (SMT).
The operating temperature range is -55°C to 125°C.
The contact finish is tin with a thickness of 30.0µin (0.76µm).
The insulation material is black liquid crystal polymer (LCP).
