| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
339,000 pcs
|
339000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,112 pcs
|
2112 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
| On Request | On Request | 300 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Resistance (Maximum @ After Environmental Tests) | |
| Contact Resistance (Maximum @ Initial) | |
| Contact Termination | |
| Contact Type | |
| Current Rating | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Voltage Rating | |
| Withstanding Voltage |

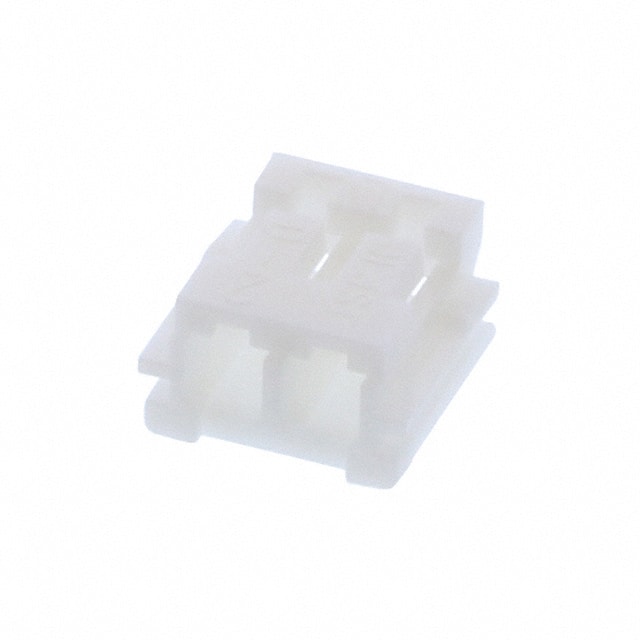

The JST EHR-2 is a rectangular connector housing designed for wire-to-board applications. It is a 2-position, single-row receptacle with a 2.50mm pitch, accommodating female socket contacts via crimp termination. The housing is natural in color and supports free hanging (in-line) mounting.
Electrical ratings include a current rating of 14 A (AC/DC) and a voltage rating of 161 V (AC/DC). The operating temperature range is -25°C to 85°C. Contact resistance is 11 mΩ maximum initially and 13 mΩ maximum after environmental tests. Insulation resistance is 1200 MΩ minimum, and withstanding voltage is 1000 V AC for 1 minute.
The housing is RoHS3 compliant and REACH unaffected, with an MSL of Level 1 (unlimited). It is suitable for various electronic interconnect applications requiring a compact, reliable connection.
The EHR-2 has 2 positions in a single row.
The pitch is 2.50mm (0.098 inches).
The current rating is 14 A (AC/DC).
The voltage rating is 161 V (AC/DC).
The EHR-2 uses free hanging (in-line) mounting.
