| Category | |
| Manufacturer Name | |
| Applicable PC Board Thickness | |
| Color | |
| Connector Type | |
| Contact Resistance (Maximum @ After Environmental Tests) | |
| Contact Resistance (Maximum @ Initial) | |
| Contact Termination | |
| Contact Type | |
| Current Rating | |
| Housing Material | |
| Insulation Diameter | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Voltage Rating | |
| Wire Range | |
| Withstanding Voltage |

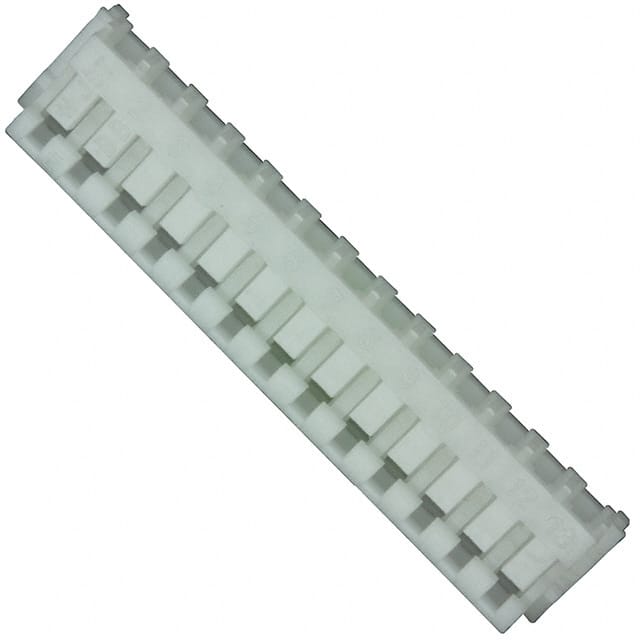

The JST EHR-13 is a 13-position rectangular connector housing from the EH series. It is a single-row receptacle housing with a 2.50mm pitch, designed for wire-to-board applications. The housing features a free hanging (in-line) mounting style and accepts female socket contacts terminated via crimp.
Electrical ratings include a current rating of 3A AC/DC and a voltage rating of 250V AC/DC. It operates over a temperature range of -25°C to 85°C. The contact resistance is 20 mΩ initial and 30 mΩ after environmental tests, with insulation resistance of 1000 MΩ minimum and withstanding voltage of 1000V AC for 1 minute.
The housing is made of PBT material with UL94V-0 flammability rating and comes in natural color. It accepts wire sizes AWG 22 to 28 with insulation diameter of 1.5 mm to 2.1 mm. The design is suitable for PCB thicknesses of 0.8 mm to 1.6 mm and mates with JST EH series headers.
Compliance includes RoHS3 and REACH unaffected, with MSL level 1 (unlimited). This connector housing is ideal for compact, high-density connections in consumer electronics, automotive, and industrial equipment.
The EHR-13 has 13 positions.
The pitch is 2.50mm (0.098 inches).
The current rating is 3A AC/DC (maximum).
The voltage rating is 250V AC/DC (maximum).
It supports free hanging (in-line) mounting.
It accepts wire sizes AWG 22 to AWG 28.
The operating temperature range is -25°C to 85°C.
