Mfr Part #:

EHF-125-01-L-D-SM-K-TR

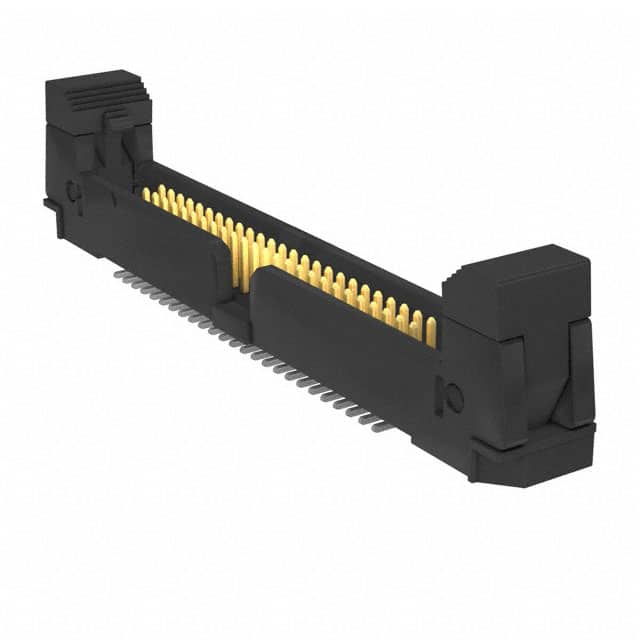

Samtec EHF-125-01-L-D-SM-K-TR is a 50 position, 2 row, 1.27mm pitch surface mount shrouded header with ejectors, designed for board to cable/wire applications.

✓ Total Stock: 51 pcs

$ Price Range: $6.43 - $9.14

EHF-125-01-L-D-SM-K-TR Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
MW.FEP S.p.A. ✓ Non-Authorised Inventory information	51 pcs On Request	51 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

EHF-125-01-L-D-SM-K-TR Description

Short technical summary and product information.

The Samtec EHF-125-01-L-D-SM-K-TR is a 50 position, 2 row, 1.27mm pitch shrouded header with ejectors, designed for board to cable/wire interconnects. It features a surface mount termination with solder tails, and a 4-wall shrouded housing with latch lock/eject hooks for secure mating. The insulator is black liquid crystal polymer (LCP) glass filled, and the contacts are phosphor bronze with 0.25µm gold plating on the mating area and matte tin on the tails. The connector includes a keying slot and a polyimide film pick and place pad for automated assembly. It is rated for 1.75A per contact and operates over a temperature range of -55°C to 125°C. The part is supplied in tape and reel packaging with 175 pieces per reel.

EHF-125-01-L-D-SM-K-TR Quick Information

Product Type: Header

Series: EHF

Canonical Name: Samtec EHF Series 50 Position 2 Row 1.27mm Pitch Surface Mount Shrouded Header with Ejectors

Subcategory: Board to Cable/Wire

EHF-125-01-L-D-SM-K-TR Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

EHF-125-01-L-D-SM-K-TR Estimated Pricing

Qty	Low	High
1+	$9.14	$9.14
10+	$8.45	$8.45
25+	$7.98	$7.98
50+	$7.27	$7.27
100+	$6.43	$6.43

Estimated market price range - modelled values for guidance only, not live distributor offers.

EHF-125-01-L-D-SM-K-TR Features

50 position 2 row 1.27mm pitch header.
Surface mount with solder termination.
Shrouded 4-wall design with ejectors.
Gold plated phosphor bronze contacts.
Rated 1.75A, -55°C to 125°C operation.

EHF-125-01-L-D-SM-K-TR Applications

Board to cable/wire interconnects.
IDC ribbon cable systems.
Automated pick and place assembly.
Compact electronic packaging.

EHF-125-01-L-D-SM-K-TR FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the EHF-125-01-L-D-SM-K-TR have?

50 positions, all loaded, in 2 rows.

What is the pitch of this connector?

1.27 mm (0.050")

What is the current rating?

1.75 A per contact.

What is the mounting type?

Surface mount (SMT) with solder termination.

What is the operating temperature range?

-55°C to 125°C.

What is the contact material and plating?

Phosphor bronze contacts with 0.25µm gold plating on the mating area and matte tin on the tails.

What packaging is available?

Tape and reel, 175 pieces per reel.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Tin
Contact Finish Thickness	0.25 µm (10.0 µ")
Contact Length	3.05 mm (0.120")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1.75 A
Fastening Type	Latch Lock/Eject Hooks
Features	Keying Slot, Pick and Place
Halogen Free	Halogen Free (Br/Cl per JS-709C)
Insulation Color	Black
Insulation Height	8.25 mm (0.325")
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Mounting Type	Surface Mount
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Pitch	1.27 mm (0.050")
Row Spacing	1.27 mm (0.050")
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Termination Style	Solder
