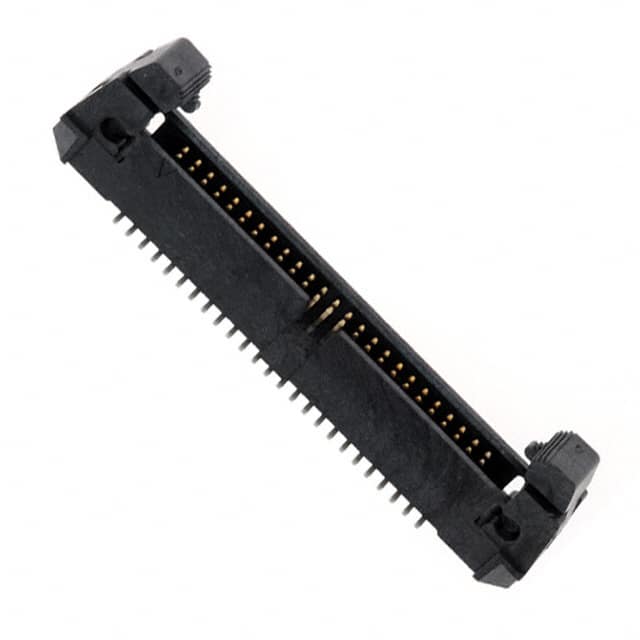

The Samtec EHF-125-01-L-D-SM is a 50-position, 2-row, 1.27mm (0.050") pitch shrouded header designed for board-to-cable/wire applications. It features a 4-wall shrouded design with latch lock/eject hooks for secure mating and easy unmating. The header has a keying slot for polarization, ensuring correct orientation.
Contacts are made of phosphor bronze with a tin plating (10.0µin), and the insulator is black liquid crystal polymer (LCP) glass filled. The header is rated for 1.75A per contact and operates over a temperature range of -55°C to 125°C. The surface mount termination allows for efficient assembly.
This header is part of Samtec's EHF series and mates with FFSD ribbon cable and FFTP twisted pair ribbon cable assemblies. It is available in surface mount, through-hole, and right-angle options. The product is RoHS3 compliant, REACH unaffected, and halogen free.
50 positions, all loaded.
1.27mm (0.050").
1.75A per contact.
Surface mount with solder termination.
-55°C to 125°C.
Tin plating, 10.0µin (0.25µm).
Yes, it features latch lock/eject hooks for secure mating.
