| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
17 pcs
|
17 pcs | On Request | 1 | On Request | On Request | 0750 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| California Proposition 65 | |
| China RoHS | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead-Free Solderable | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| PFAS | |
| Packaging Type | |
| Penta Octa Compliant | |
| Pitch | |
| Row Spacing | |
| SMT Lead Coplanarity | |
| Shrouding | |
| Standard Package Quantity | |
| Style | |
| Termination | |
| UL Recognition |

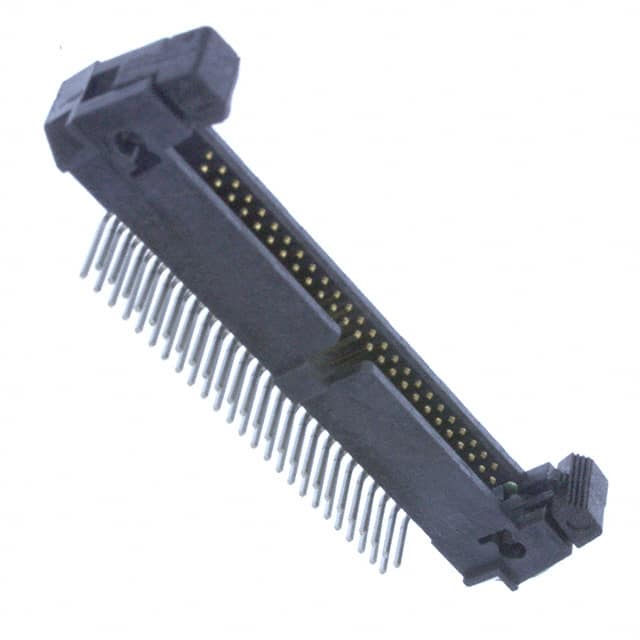

The Samtec EHF-125-01-L-D-RA is a 50-position, double row shrouded header from the EHF series, featuring a 1.27mm (0.050") pitch and right-angle through hole termination. The connector is designed for board to cable/wire applications and mates with Samtec FFSD ribbon cable and FFTP twisted pair ribbon cable assemblies. It includes a keying slot and latch lock/eject hooks for secure mating and easy unmating.
Electrical rating is 1.75A per contact. The operating temperature range spans -55°C to +125°C. The contact is made of phosphor bronze with a tin finish (10µin over 50µin nickel), and the insulator is black liquid crystal polymer (LCP) glass filled. The header is shrouded with four walls for pin protection and polarization.
The part is lead-free solderable and RoHS3 compliant with MSL 1 unlimited. Packaging is in tubes of 12 pieces.
The pitch is 1.27mm (0.050").
It has 50 positions arranged in 2 rows.
Through hole, right angle.
1.75A per contact.
-55°C to +125°C.
