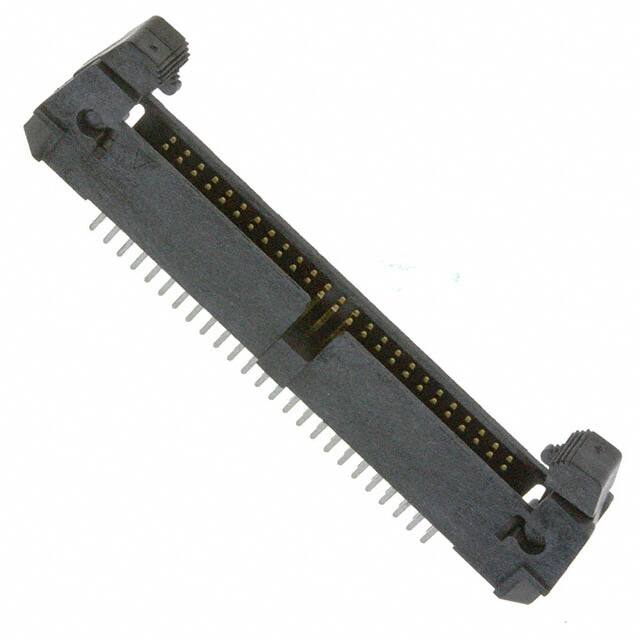

The Samtec EHF-125-01-L-D is a 50-position, double-row shrouded header with a 1.27mm (0.050") pitch, designed for board-to-cable/wire applications. It features through hole mounting with solder termination and is part of Samtec's EHF series, which mates with FFSD ribbon cable and FFTP twisted pair ribbon cable assemblies.
The header is fully shrouded with four walls and includes latch lock/eject hooks for secure mating and easy unmating. Contacts are made of phosphor bronze with a tin finish (0.25µm thickness) and have a square shape. The insulation is black liquid crystal polymer (LCP) glass filled, with a height of 8.25mm. A keying slot is provided for polarization.
Electrical rating is 1.75A per contact, with an operating temperature range of -55°C to 125°C. The component is MSL 1 (unlimited) and complies with RoHS3, REACH, and halogen-free requirements. It is UL recognized under document E111594.
Packaging is typically in tubes, though standard package quantity is not confirmed for this exact variant. The part number EHF-125-01-L-D is the through hole version; a surface mount variant (EHF-125-01-L-D-SM) also exists.
50 positions.
1.27mm (0.050").
1.75A.
Through hole.
-55°C to 125°C.
Tin, 0.25µm thickness.
Yes, RoHS3 compliant.
