| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13 pcs
|
13 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

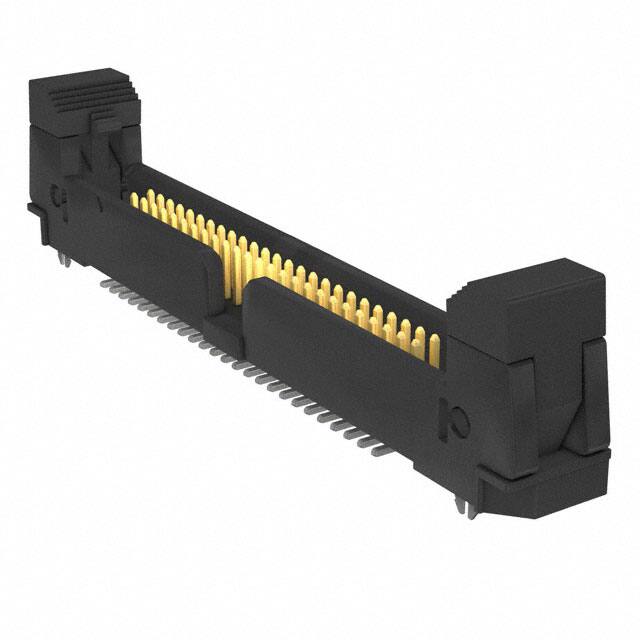

The Samtec EHF-125-01-F-D-SM-LC is a .050" (1.27mm) pitch shrouded header designed for board-to-cable/wire applications. This 50-position, 2-row connector features surface mount termination with solder contacts. The header is shrouded with a 4-wall design and includes latch lock/eject hooks for secure mating. Key features include board lock and keying slot for alignment. The insulation is black liquid crystal polymer (LCP) with glass filling, offering high temperature resistance. Contacts are made of phosphor bronze with a tin finish (3.00µin). The operating temperature range is -55°C to 125°C, and it is RoHS3 and REACH compliant. The header is rated for 1.75A per contact. This part is suitable for various interconnect applications requiring reliable, high-density connections. It is packaged in bulk.
50 positions.
1.27mm (0.050").
1.75A per contact.
Surface Mount.
-55°C to 125°C.
Tin, 3.00µin (0.076µm) thickness.
Yes, RoHS3 compliant.
