| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
136 pcs
|
136 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulator Material | |
| Lead-Free Solderable | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Plating | |
| Prop 65 | |
| Row Spacing | |
| SMT Lead Coplanarity | |
| SVHC Present | |
| Shrouding | |
| Standard Package Qty | |
| Style | |
| Terminal Material | |
| Termination |

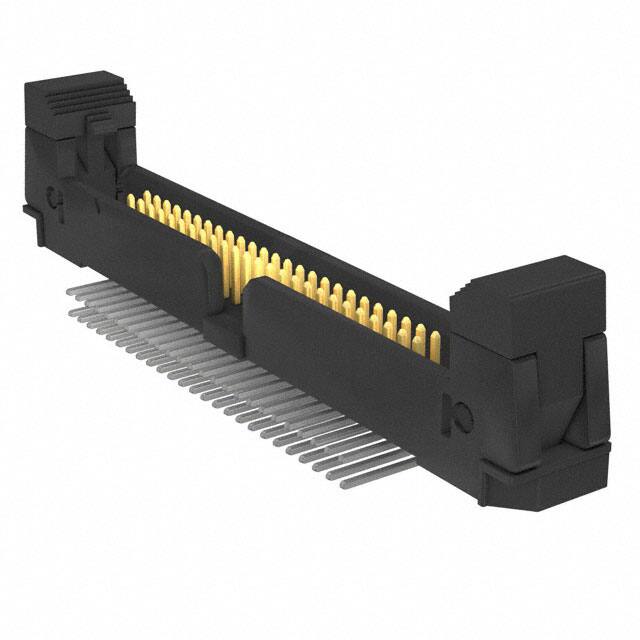

The Samtec EHF-125-01-F-D-RA is a .050" (1.27 mm) pitch double row shrouded header from the EHF series, designed for board-to-cable/wire applications. It features a 4-wall shrouded design with latch lock/eject hooks for secure mating with FFSD ribbon cable and FFTP twisted pair ribbon cable assemblies.
This connector has 50 positions loaded in 2 rows with a pitch of 1.27mm and a row spacing of 1.27mm. The contacts are made of phosphor bronze with a tin finish (3.00µin thickness) and have a square shape. The insulator is black liquid crystal polymer (LCP) with glass fill, and the mounting type is through-hole, right angle with solder termination.
Key specifications include a current rating of 1.75A and an operating temperature range of -55°C to +125°C. The part is packaged in a tube with a standard quantity of 12 pieces. It is RoHS3 compliant, REACH unaffected, and halogen free.
It has 50 positions.
The pitch is 1.27mm (0.050").
The current rating is 1.75A.
It is a through-hole, right angle mounting type.
The operating temperature range is -55°C to +125°C.
The contact finish is Tin with a thickness of 3.00µin (0.076µm).
The part is packaged in a tube with a standard quantity of 12.
