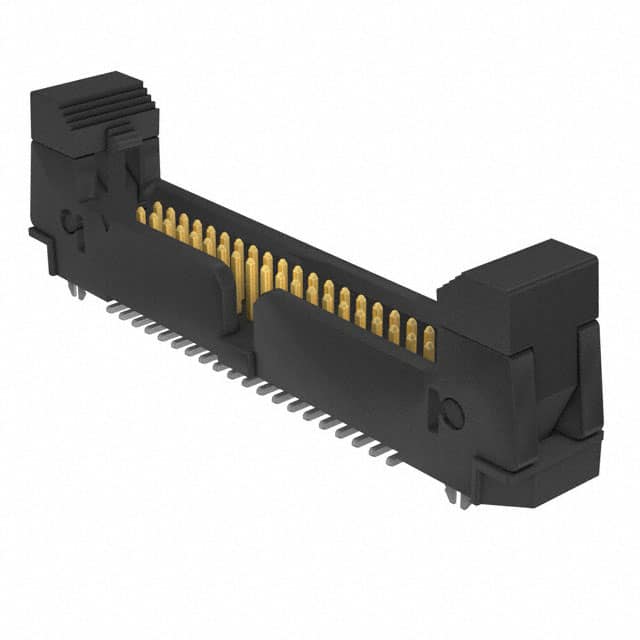

The Samtec EHF-120-01-L-D-SM-LC is a .050" (1.27mm) pitch double-row shrouded header with ejectors, designed for board-to-cable/wire applications. It features 40 positions arranged in 2 rows with a pitch of 1.27mm and row spacing of 1.27mm. The connector is surface mount with solder termination and includes a latch lock/eject hooks fastening system for secure mating. The insulator is black liquid crystal polymer (LCP) with glass filling, and the contacts are phosphor bronze with a tin finish (10µin over nickel). The operating temperature range is -55°C to +125°C, and the current rating is 1.75A. Additional features include board lock and keying slot for polarization. This header mates with FFSD ribbon cable assemblies and FFTP twisted pair ribbon cable assemblies. Packaging is tube (14 parts per package). The part is RoHS3 compliant, REACH unaffected, and halogen free.
40 positions in 2 rows.
1.27mm (0.050").
1.75A.
Surface Mount.
-55°C to 125°C.
Latch Lock/Eject Hooks.
Mates with FFSD and FFTP cable assemblies.
