EHF-117-01-F-D-SM The Samtec EHF-117-01-F-D-SM is a 34-position, 2-row shrouded IDC header with a 1.27mm pitch. It features surface mount termination, locking clip, and tin-plated phosphor bronze contacts.
Mfr Part #:

EHF-117-01-F-D-SM

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
The Samtec EHF-117-01-F-D-SM is a 34-position, 2-row shrouded IDC header with a 1.27mm pitch. It features surface mount termination, locking clip, and tin-plated phosphor bronze contacts.
✓ Total Stock: 1 pcs

EHF-117-01-F-D-SM Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EHF-117-01-F-D-SM Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Insulator Material
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Plating
Prop 65
Row Spacing
SVHC Present
Shrouding
Style
Termination
View Similar Products (0)

EHF-117-01-F-D-SM Description

Short technical summary and product information.

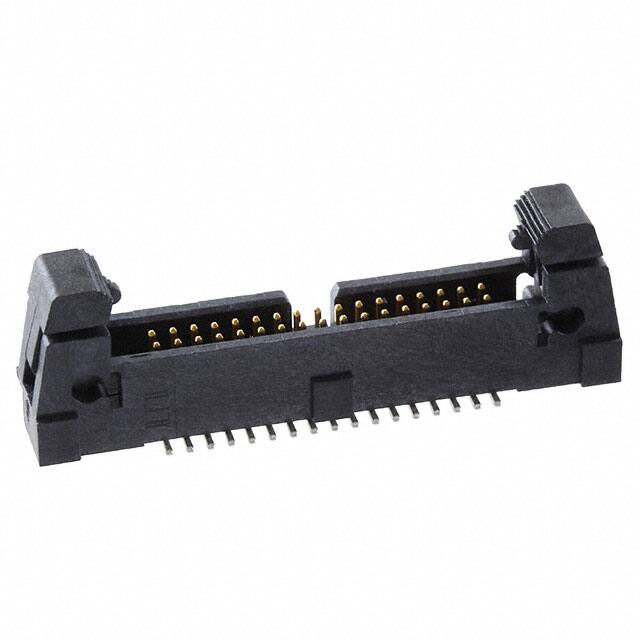

The Samtec EHF-117-01-F-D-SM is a 34-position, 2-row shrouded IDC header from the EHF series, designed for board-to-cable/wire applications. It features a 1.27mm (0.050") pitch and a shrouded 4-wall design with ejector hooks for secure mating with Samtec FFSD and FFTP ribbon cable assemblies. The header is surface mount (SMD) with solder termination and includes a locking clip (LC) for added retention.



Key specifications include a current rating of 1.75A, operating temperature range of -55°C to 125°C, and tin-plated phosphor bronze contacts with 3.00µin (0.076µm) thickness. The insulator is black liquid crystal polymer (LCP) with glass fill, providing high temperature resistance and lead-free solderability. The SMT leads have a coplanarity of 0.10mm max.



This header is RoHS3, REACH, and Halogen Free compliant, with MSL 1 (unlimited). It is packaged in a tube of 15 pieces. The part is suitable for high-density signal routing in industrial, commercial, and telecommunications equipment where a reliable locking interface is required.

EHF-117-01-F-D-SM Quick Information

Product Type: Shrouded IDC Header with Ejectors
Series: EHF
Canonical Name: Samtec EHF Series .050" Shrouded IDC Header, 34 Positions, 2 Rows, Surface Mount, with Locking Clip
Subcategory: Board to Cable/Wire Header

EHF-117-01-F-D-SM Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EHF-117-01-F-D-SM Features

  • 34-position, 2-row shrouded header.
  • 1.27mm (0.050") pitch.
  • Surface mount with locking clip.
  • Rated for 1.75A continuous current.
  • Operating temperature range -55°C to 125°C.

EHF-117-01-F-D-SM Applications

  • Board-to-cable interconnects for ribbon cable assemblies.
  • Ideal for high-density signal routing.
  • Used in industrial and commercial electronics.
  • Suitable for applications requiring secure locking mechanism.

EHF-117-01-F-D-SM FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the EHF-117-01-F-D-SM have?

34 positions.

What is the pitch of this header?

1.27mm (0.050").

What is the current rating?

1.75A.

What is the mounting type?

Surface mount (SMD).

What is the operating temperature range?

-55°C to 125°C.

What contact finish does it have?

Tin, 3.00µin (0.076µm) thickness.

Is it RoHS compliant?

Yes, RoHS3 compliant.
