| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
22 pcs
|
22 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Packaging Type | |
| Pitch | |
| Prop 65 | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Standard Package Quantity | |
| Style | |
| Termination |

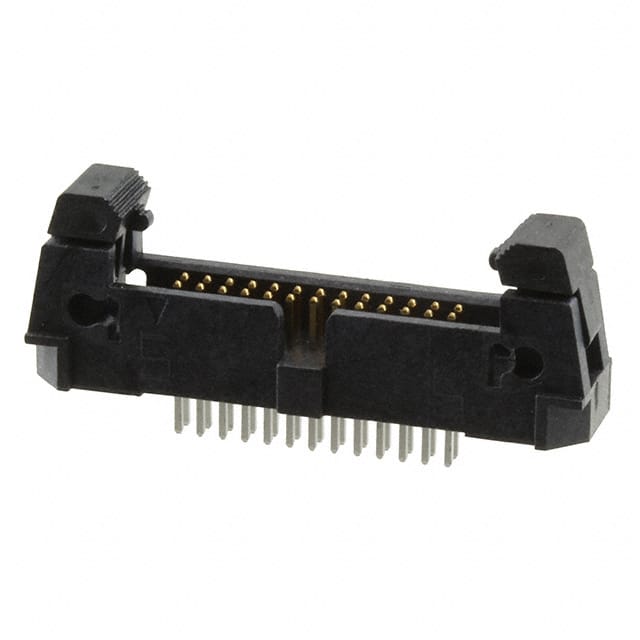

The Samtec EHF-113-01-L-D is a .050" (1.27mm) pitch double row shrouded header with ejectors. It features 26 positions loaded in 2 rows, with a through-hole mounting style and solder termination. The connector uses square male pins made of phosphor bronze with a tin contact finish (10.0µin / 0.25µm).
The insulation is black liquid crystal polymer (LCP), glass filled, with an insulation height of 8.25mm. The shrouding is a 4-wall design with a keying slot feature, and the fastening type is latch lock/eject hooks. The overall contact length is 0.350" (8.89mm).
This header is rated for a current of 1.75A and operates over a temperature range of -55°C to 125°C. It is packaged in a tube with a standard quantity of 18 pieces. The part is RoHS3 compliant, REACH unaffected, and has an MSL of Level 1 (unlimited).
It has 26 positions, all loaded, in 2 rows.
The pitch is 1.27mm (0.050") with a row spacing of 1.27mm.
The current rating is 1.75A.
It is a through-hole mounting connector with solder termination.
The operating temperature range is -55°C to 125°C.
The contact material is phosphor bronze with a tin finish of 10.0µin (0.25µm).
It is RoHS3 compliant, REACH unaffected (no SVHCs), MSL Level 1, and halogen free.
