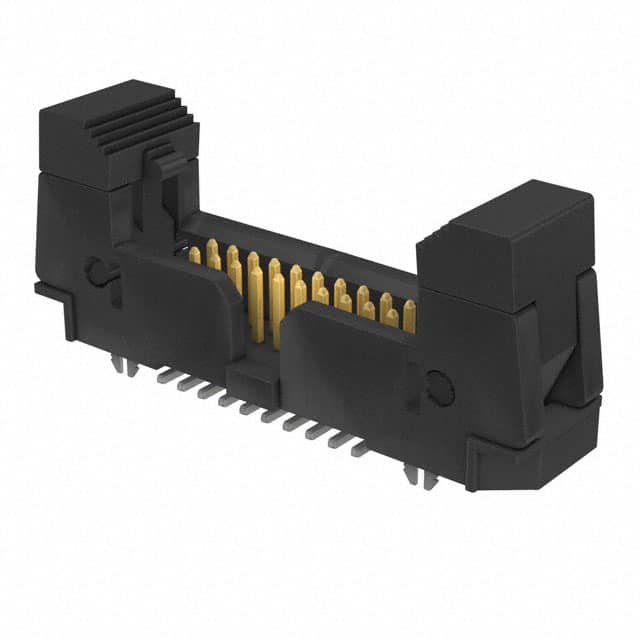

EHF-110-01-L-D-SM-LC Samtec EHF series .050" (1.27mm) pitch double row shrouded header with ejectors, 20 positions, surface mount, gold plating.
Mfr Part #:

EHF-110-01-L-D-SM-LC

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec EHF series .050" (1.27mm) pitch double row shrouded header with ejectors, 20 positions, surface mount, gold plating.
✓ Total Stock: 13 pcs
$ Price Range: $3.20 - $5.42

EHF-110-01-L-D-SM-LC Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
13 pcs
On Request
13 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EHF-110-01-L-D-SM-LC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish - Mating
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating
Current Rating (Amps)
Fastening Type
Features
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Termination
View Similar Products (0)

EHF-110-01-L-D-SM-LC Description

Short technical summary and product information.

The Samtec EHF-110-01-L-D-SM-LC is a .050" (1.27 mm) pitch shrouded header with ejector hooks, designed for board-to-cable/wire applications. It features 20 male pin contacts arranged in 2 rows, all positions loaded, with a square contact shape.



This surface mount header includes a locking clip (LC option) and keying slot for secure mating. The contact finish is 10 µ" gold on the mating post with matte tin on the tail, over a phosphor bronze base. The black liquid crystal polymer (LCP) insulator is glass filled for high temperature performance.



Rated at 1.75A per contact, the connector operates across -55°C to +125°C. The shrouded 4-wall design with latch lock/eject hooks provides robust cable retention. Board locks are included for additional mechanical stability on the PCB.



Supplied in tube packaging (20 pieces per tube), this connector is lead-free solderable, RoHS3 compliant, and has a moisture sensitivity level of 1 (unlimited). It mates with Samtec FFSD and FFTP ribbon cable assemblies.

EHF-110-01-L-D-SM-LC Quick Information

Product Type: Rectangular Connector - Header, Male Pins
Series: EHF
Canonical Name: Samtec EHF Series .050" Shrouded IDC Header with Ejectors, 20 Positions, 2 Rows, Surface Mount
Subcategory: Headers, Male Pins

EHF-110-01-L-D-SM-LC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Moisture Sensitivity Level 1 (Unlimited)
REACH Status: REACH Unaffected

EHF-110-01-L-D-SM-LC Estimated Pricing

Qty Low High
1+ $5.42 $5.42
25+ $4.90 $4.90
50+ $4.55 $4.55
100+ $4.09 $4.09
500+ $3.65 $3.65
1,000+ $3.20 $3.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

EHF-110-01-L-D-SM-LC Features

  • 20 position 1.27mm pitch shrouded header.
  • Surface mount with locking clip and ejectors.
  • Gold plated contacts rated for 1.75A.
  • Dual row design with all positions loaded.
  • Board lock and keying slot features included.

EHF-110-01-L-D-SM-LC Applications

  • Board-to-cable interconnect for ribbon cable assemblies.
  • Used in internal wiring and data transmission applications.
  • Suitable for industrial control and instrumentation systems.

EHF-110-01-L-D-SM-LC FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the EHF-110-01-L-D-SM-LC have?

This connector has 20 positions (2 rows, 10 per row).

What is the pitch of this Samtec header?

The pitch is 1.27 mm (0.050").

What is the current rating of the EHF-110-01-L-D-SM-LC?

Each contact is rated for 1.75 A.

What type of mounting does this connector use?

It is a surface mount (SMD) connector with solder termination.

What is the operating temperature range?

The operating temperature range is -55°C to +125°C.

Is the EHF-110-01-L-D-SM-LC RoHS compliant?

Yes, it is RoHS3 compliant and also REACH unaffected.

What is the moisture sensitivity level of this part?

Moisture Sensitivity Level (MSL) is 1, meaning unlimited floor life.
