| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| China RoHS | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Lead-Free Solderable | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Overall Contact Length | |
| PFAS | |
| Packaging Type | |
| Penta Octa Compliant | |
| Pitch | |
| Prop 65 | |
| Row Spacing | |
| Shrouding | |
| Standard Package Quantity | |
| Style | |
| Termination | |
| Termination Style |

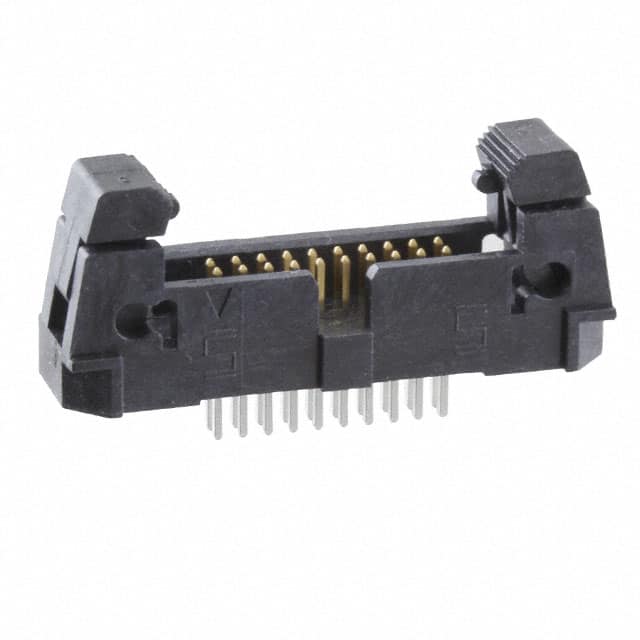

The Samtec EHF-110-01-F-D is a .050" (1.27mm) pitch double row shrouded header with ejectors, designed for board-to-cable/wire applications. It features 20 positions (2 rows) with through-hole solder termination. Contacts are made of phosphor bronze with a tin finish (3.00µin thickness). The insulation is black liquid crystal polymer (LCP) with a height of 8.25mm. The overall contact length is 8.89mm, with a contact length of 3.05mm. The connector is rated for 1.75A per contact and operates over -55°C to 125°C. It includes a latch lock/eject hooks fastening type and a keying slot feature. This header mates with Samtec FFSD ribbon cable and FFTP twisted pair ribbon cable assemblies. Packaging is tube of 20 pieces. The product is RoHS3 compliant, halogen free, and has MSL 1.
20 positions
1.27mm (0.050")
1.75A per contact
Through-hole
-55°C to 125°C
Phosphor bronze contacts, black liquid crystal polymer (LCP) insulation
Yes, RoHS3 compliant
