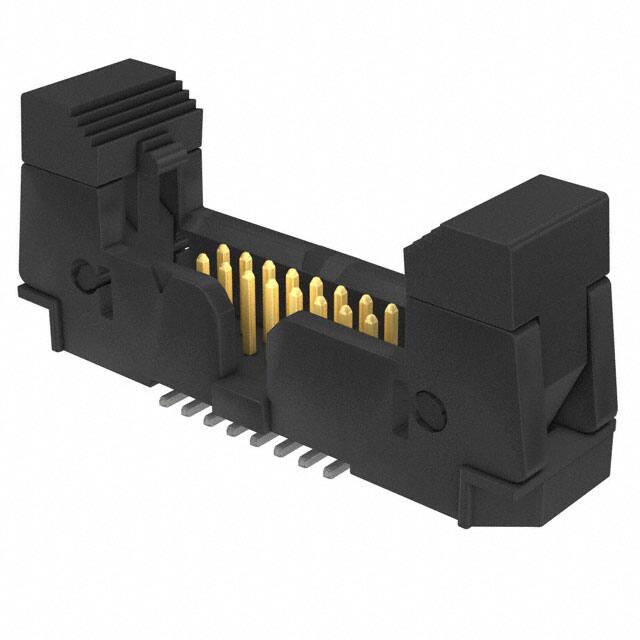

The Samtec EHF-108-01-L-D-SM is a .050" (1.27mm) pitch double row shrouded header designed for board-to-cable/wire applications. It is part of the EHF series, which includes ejectors for secure mating and unmating. The connector has 16 positions loaded with all contacts, arranged in 2 rows.
The header features a surface mount termination with solder contacts. The contacts are made of phosphor bronze with a tin finish (10.0µin). The insulation material is liquid crystal polymer (LCP) with glass fill, colored black. The insulation height is 8.25mm. The connector is fully shrouded (4 walls) and includes a keying slot for polarization. It has a latch lock/eject hooks fastening type.
The current rating is 1.75A per contact. The operating temperature range is -55°C to 125°C. It is RoHS3 compliant, REACH unaffected, and halogen free (Br/Cl per JS-709C). The moisture sensitivity level is 1 (unlimited). The contact length is 3.05mm.
The connector is supplied in a tube packaging with a standard quantity of 23 per package. It mates with Samtec FFSD ribbon cable and FFTP twisted pair ribbon cable assemblies. The part number suffix indicates the plating option (L = gold flash). Other options include tape and reel packaging (TR suffix).
It has 16 positions, all loaded.
The pitch is 1.27mm (0.050").
The current rating is 1.75A per contact.
It is surface mount (SMD).
-55°C to 125°C.
Tin with a thickness of 10.0µin (0.25µm).
Liquid Crystal Polymer (LCP), glass filled.
