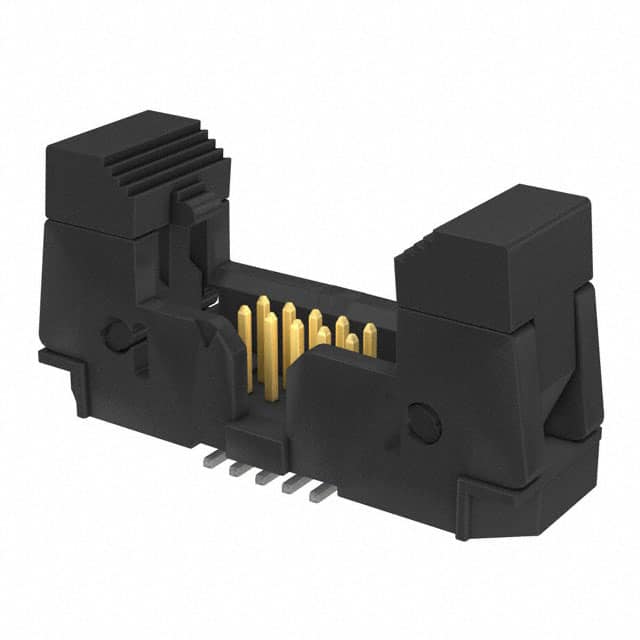

EHF-105-01-L-D-SM The Samtec EHF-105-01-L-D-SM is a 10-position, 2-row, 1.27mm pitch shrouded header with latch lock/eject hooks, designed for surface mount soldering. It mates with FFSD and FFTP ribbon cable assemblies.
Mfr Part #:

EHF-105-01-L-D-SM

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
The Samtec EHF-105-01-L-D-SM is a 10-position, 2-row, 1.27mm pitch shrouded header with latch lock/eject hooks, designed for surface mount soldering. It mates with FFSD and FFTP ribbon cable assemblies.
✓ Total Stock: 10 pcs
$ Price Range: $1.52 - $4.30

EHF-105-01-L-D-SM Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EHF-105-01-L-D-SM Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating
Current Rating (Amps)
Fastening Type
Features
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Operating Temperature Range
Pitch
Row Spacing
Shrouding
Style
Termination
View Similar Products (0)

EHF-105-01-L-D-SM Description

Short technical summary and product information.

The Samtec EHF-105-01-L-D-SM is a .050" (1.27mm) pitch double row shrouded header with ejectors, part of the EHF series. It features 10 positions (5 per row) with all positions loaded, and a surface mount termination style. The contact material is phosphor bronze with a tin finish (10µin gold on post, matte tin on tail per -L option), and the insulator is black liquid crystal polymer (LCP), glass filled. The connector has a keying slot for polarization and a latch lock/eject hook fastening system for secure mating. It is rated for 1.75A per contact and operates over -55°C to +125°C. The product is RoHS3 compliant, REACH unaffected, and halogen free. It is supplied in tubes of 27 pieces, with tape and reel options available. The EHF header is designed for board-to-cable/wire applications and mates with Samtec FFSD ribbon cable and FFTP twisted pair ribbon cable assemblies.

EHF-105-01-L-D-SM Quick Information

Product Type: Header
Series: EHF
Canonical Name: Samtec EHF-105-01-L-D-SM .050" (1.27mm) Pitch Shrouded IDC Header with Ejectors, 10 Positions, 2 Rows, Surface Mount
Subcategory: Shrouded Header

EHF-105-01-L-D-SM Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EHF-105-01-L-D-SM Estimated Pricing

Qty Low High
1+ $4.30 $4.30
25+ $3.89 $3.89
50+ $3.62 $3.62
100+ $3.25 $3.25
500+ $2.86 $2.86
1,000+ $2.50 $2.50
2,500+ $1.93 $1.93
5,000+ $1.52 $1.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

EHF-105-01-L-D-SM Features

  • 10-position, 2-row .050" (1.27mm) pitch shrouded header.
  • Surface mount termination with tin-plated contacts.
  • Latch lock/eject hooks for secure cable retention.
  • Keying slot for polarization and proper alignment.
  • Rated for 1.75A per contact, -55°C to +125°C.

EHF-105-01-L-D-SM Applications

  • Ideal for ribbon cable and twisted pair cable assemblies.
  • Used in board-to-cable interconnect applications.
  • Suitable for industrial and commercial electronics.
  • Common in data communication and signal routing.

EHF-105-01-L-D-SM FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the EHF-105-01-L-D-SM have?

It has 10 positions (2 rows of 5).

What is the pitch of this header?

The pitch is 1.27mm (0.050").

What is the current rating?

1.75A per contact.

What is the mounting type?

Surface Mount.

What is the operating temperature range?

-55°C to +125°C.

What is the contact finish?

Tin (10µin gold on post, matte tin on tail for -L option).

What is the insulation material?

Black liquid crystal polymer (LCP), glass filled.
