EHF-105-01-L-D 10-position, 2-row shrouded IDC header with ejectors, 1.27mm pitch, through hole termination. Designed for board-to-cable/wire applications.
Mfr Part #:

EHF-105-01-L-D

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
10-position, 2-row shrouded IDC header with ejectors, 1.27mm pitch, through hole termination. Designed for board-to-cable/wire applications.
✓ Total Stock: 6 pcs

EHF-105-01-L-D Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
6 pcs
On Request
6 pcs On Request 1 On Request On Request 1009 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EHF-105-01-L-D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Length - Mating
Contact Material
Contact Shape
Contact Type
Current Rating
Current Rating (Amps)
Fastening Type
Features
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
Prop 65
Row Spacing
SVHC Present
Shrouding
Style
Termination
View Similar Products (0)

EHF-105-01-L-D Description

Short technical summary and product information.

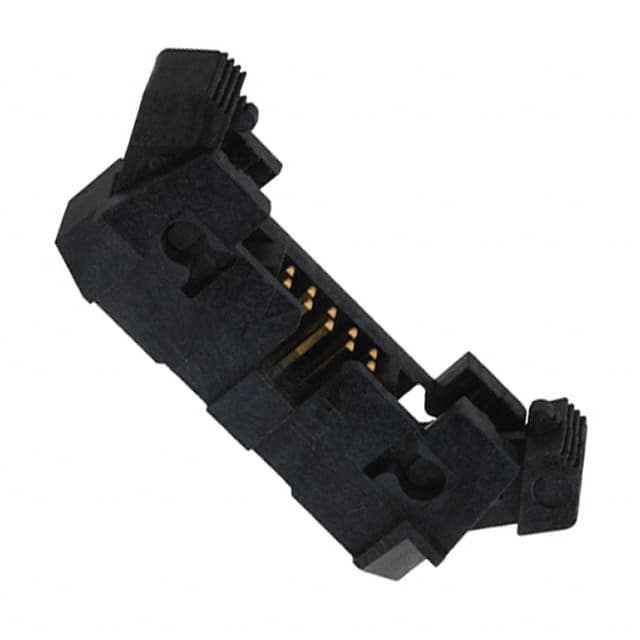

The Samtec EHF-105-01-L-D is a .050" (1.27mm) pitch double row shrouded header with ejectors, part of the EHF series of IDC cable systems. It features 10 positions in 2 rows, all loaded, with a 4-wall shrouded design that includes latch lock/eject hooks for secure mating. The header is terminated via through hole solder.



Key specifications include a contact rating of 1.75A per pin, an operating temperature range of -55°C to 125°C, and a contact finish of 10µ" gold on the mating post with matte tin on the tail. The insulator is black liquid crystal polymer (LCP) glass filled, and the contacts are made of phosphor bronze. The header includes a keying slot for polarization.



This connector is suited for board-to-cable/wire connections in a variety of industrial, data communication, and instrumentation applications. It mates with Samtec FFSD ribbon cable and FFTP twisted pair cable assemblies. The packaging is tube with a standard quantity of 27 pieces.

EHF-105-01-L-D Quick Information

Product Type: Shrouded IDC Header
Series: EHF
Canonical Name: Samtec EHF-105-01-L-D .050" Shrouded IDC Header with Ejectors, 10 Positions, 2 Rows, Through Hole
Subcategory: Board-to-Cable/Wire Connectors

EHF-105-01-L-D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead-Free Solderable

EHF-105-01-L-D Features

  • 10 positions, 2 rows at 1.27mm pitch.
  • Shrouded 4-wall design with latch lock/eject hooks.
  • Gold-plated phosphor bronze contacts.
  • Through hole solder termination.
  • Keying slot for polarization.

EHF-105-01-L-D Applications

  • Board-to-cable connections in industrial electronics.
  • Used in data communication equipment.
  • Ideal for test and measurement devices.
  • Suitable for medical instrumentation.

EHF-105-01-L-D FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the EHF-105-01-L-D header?

The pitch is 1.27mm (0.050").

How many positions does the EHF-105-01-L-D have?

It has 10 positions in 2 rows.

What is the current rating of this header?

The current rating is 1.75A per contact.

What is the operating temperature range?

The operating temperature range is -55°C to 125°C.

What is the mounting type?

Through hole.

What is the contact finish?

10µ" gold on the mating post, matte tin on the tail.

Is this header RoHS compliant?

Yes, RoHS3 compliant.
