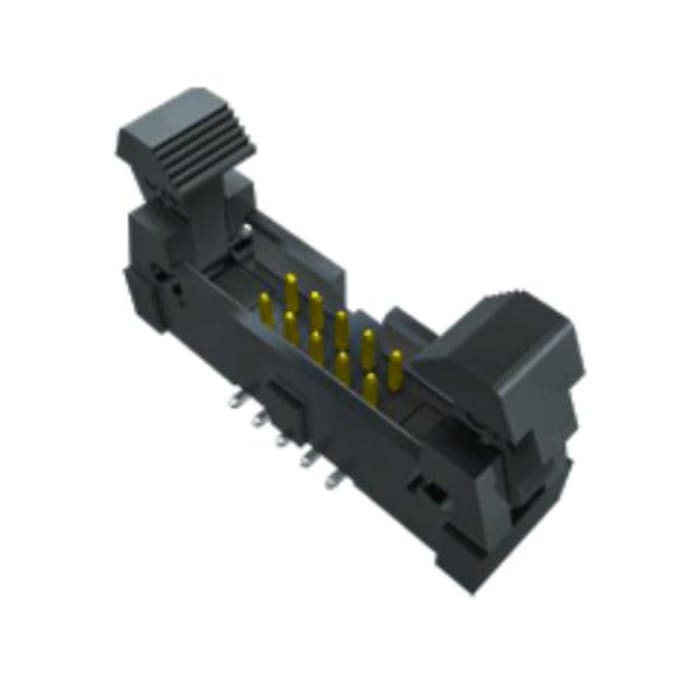

EHF-105-01-F-D-SM-P-TR The Samtec EHF-105-01-F-D-SM-P-TR is a PCB header with 10 contacts arranged in 2 rows. It features a 1.27mm pitch and straight orientation.
Mfr Part #:

EHF-105-01-F-D-SM-P-TR

Available from 1 distributors
Mfr Name: SMT
SMT
The Samtec EHF-105-01-F-D-SM-P-TR is a PCB header with 10 contacts arranged in 2 rows. It features a 1.27mm pitch and straight orientation.
✓ Total Stock: 363 pcs
$ Price Range: $0.77

EHF-105-01-F-D-SM-P-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
363 pcs
On Request
363 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EHF-105-01-F-D-SM-P-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector System
Contact Material
Contact Plating
Housing Material
Mounting Type
Number of Contacts
Number of Rows
Orientation
Pitch
SVHC Present
Shrouding
Tape & Reel
Termination Style
View Similar Products (0)

EHF-105-01-F-D-SM-P-TR Description

Short technical summary and product information.

This Samtec EHF series PCB header, part number EHF-105-01-F-D-SM-P-TR, is designed for board-to-cable applications. It offers 10 contacts in a 2-row configuration with a precise 1.27mm pitch.



The header features a straight orientation and a surface mount termination style, making it suitable for various PCB assembly processes. The contacts are made of Phosphor Bronze with Gold Flash plating for reliable conductivity. The housing is constructed from durable Liquid Crystal Polymer.



With an operating temperature range of -55°C to 125°C, this connector is built for demanding environments. It is a shrouded header, providing protection and polarization for the connections.

EHF-105-01-F-D-SM-P-TR Quick Information

Product Type: PCB Header
Series: EHF
Canonical Name: Samtec EHF Series PCB Header, 10 Contacts, 2 Rows, 1.27mm Pitch
Subcategory: Headers, Male Pins

EHF-105-01-F-D-SM-P-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EHF-105-01-F-D-SM-P-TR Estimated Pricing

Qty Low High
1+ $0.77 $0.77

Estimated market price range - modelled values for guidance only, not live distributor offers.

EHF-105-01-F-D-SM-P-TR Features

  • 10 contacts in 2 rows.
  • 1.27mm pitch for compact design.
  • Straight orientation for PCB mounting.
  • Surface mount termination style.
  • Phosphor Bronze contacts with Gold Flash.

EHF-105-01-F-D-SM-P-TR Applications

  • Ideal for board-to-cable connections.
  • Suitable for compact electronic devices.
  • Used in general interconnect applications.
  • Requires reliable signal integrity.

EHF-105-01-F-D-SM-P-TR FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the EHF-105-01-F-D-SM-P-TR have?

It has 10 positions.

What is the pitch of this header?

The pitch is 1.27 mm.

What is the mounting type?

Surface mount.

How many rows does it have?

It has 2 rows.

What is the operating temperature range?

The operating temperature range is -55°C to 125°C.

What is the contact material and plating?

The contacts are phosphor bronze with gold flash plating.
