| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13 pcs
|
13 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Diameter Range | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Gender | |
| Contact Resistance | |
| Current Rating | |
| Current Rating (Amps) | |
| Dielectric Strength (Minimum @ Contact-Contact, AC) | |
| Dielectric Strength (Minimum @ Contact-Contact, DC) | |
| Dielectric Strength (Minimum @ Contact-Shell, AC) | |
| Dielectric Strength (Minimum @ Contact-Shell, DC) | |
| Failure Rate | |
| Fastening Type | |
| Humidity | |
| Ingress Protection | |
| Insulator Material | |
| Material Flammability Rating | |
| Mating Cycles | |
| Max Solid Conductor | |
| Max Stranded Conductor | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Shielding Effectiveness (Minimum @ 1 GHz) | |
| Shielding Effectiveness (Minimum @ 10 MHz) | |
| Shock Resistance | |
| Termination | |
| Vibration Resistance | |
| Weight | |
| Wire Size (AWG) |

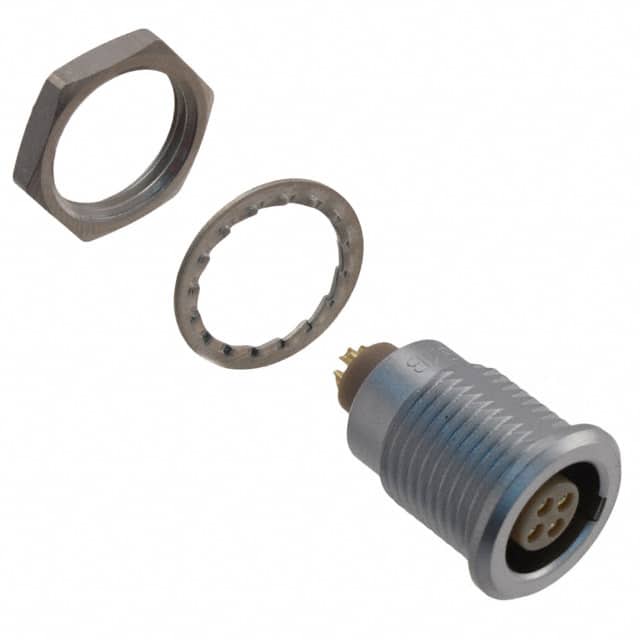

The LEMO EGG.1B.304.CLL is a 4 position circular connector receptacle from the 1B series. It features a push-pull locking mechanism and a panel mount with bulkhead rear side nut. The connector is shielded and has an IP50 ingress protection rating.
Electrical specifications include a current rating of 10 A and a maximum contact resistance of 4.8 mOhm. Dielectric strength is tested at 1350 V AC and 1910 V DC between contacts, and 1450 V AC and 2050 V DC between contact and shell. The operating temperature range is -55°C to 250°C.
The connector accepts wire sizes from 30 to 22 AWG and has a cable diameter range of 1.00 to 10.60 mm. The insulator material is PEEK with a UL94 V-0 flammability rating. The shell is made of brass with a chrome finish.
4 positions.
10 A.
Panel mount with bulkhead rear side nut.
IP50 (dust protected).
-55°C to 250°C.
30 to 22 AWG.
Gold.
