| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
29 pcs
|
29 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Resistance | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Humidity | |
| IP Rating | |
| Ingress Protection | |
| Insulator Material | |
| Material Flammability Rating | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Salt Spray | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shield Effectiveness (@ 1 GHz) | |
| Shield Effectiveness (@ 10 MHz) | |
| Shielding | |
| Shock Resistance | |
| Termination | |
| Vibration | |
| Voltage - Withstand (@ Contact-to-Contact) | |
| Voltage - Withstand (@ Contact-to-Shell) | |
| Weight | |
| Wire size |

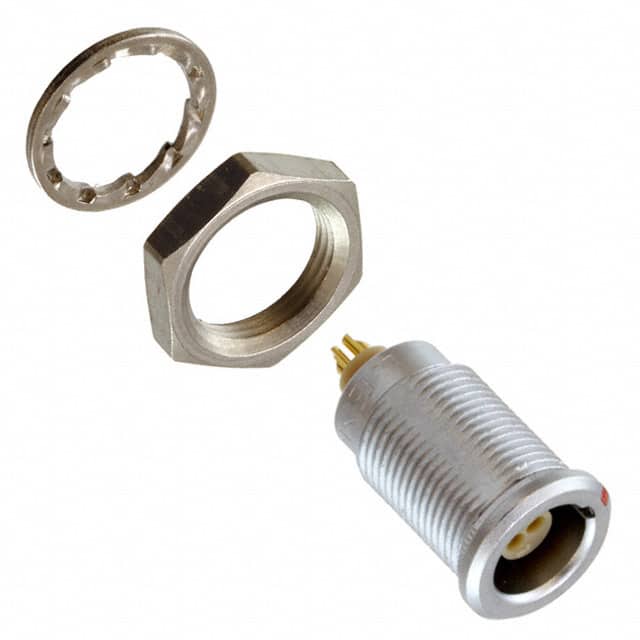

The LEMO EGG.00.302.CLL is a high-quality 2-position female circular connector receptacle from the B series, designed for indoor keyed applications. It features a push-pull locking mechanism for secure and quick mating, and a panel mount configuration with bulkhead rear side nut for fixed installation. The connector is shielded to provide EMI protection, with a brass shell finished in chrome.
Electrical specifications include a current rating of 3.5 A, withstand voltage of 1000 V AC / 1400 V DC contact-to-contact, and 950 V AC / 1340 V DC contact-to-shell. The contacts are gold-plated for reliable low-resistance connections, with a maximum contact resistance of 8.7 mOhm. The operating temperature range spans -55°C to 250°C, suitable for demanding environments. The insulator material is PEEK with UL94 V-0 flammability rating.
Mechanically, the connector accommodates wire sizes 34-28 AWG, uses solder cup termination, and has keying orientation G. It offers shock resistance up to 100 g and vibration resistance of 15 g, with salt spray endurance exceeding 1000 hours. The IP50 rating provides dust protection, making it suitable for controlled indoor environments.
This connector has 2 positions (female sockets).
The rated current is 3.5 A.
Panel mount with bulkhead - rear side nut.
Withstand voltage: 1000 V AC / 1400 V DC (contact-to-contact) and 950 V AC / 1340 V DC (contact-to-shell).
-55°C to 250°C.
IP50 (dust protected).
Push-pull locking.
