| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,166 pcs
|
4166 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Actuator Length | |
| Actuator Type | |
| Circuit | |
| Contact Resistance | |
| Contact Timing | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Temperature | |
| Storage Temperature | |
| Switch Function | |
| Termination Style | |
| Voltage Rating |

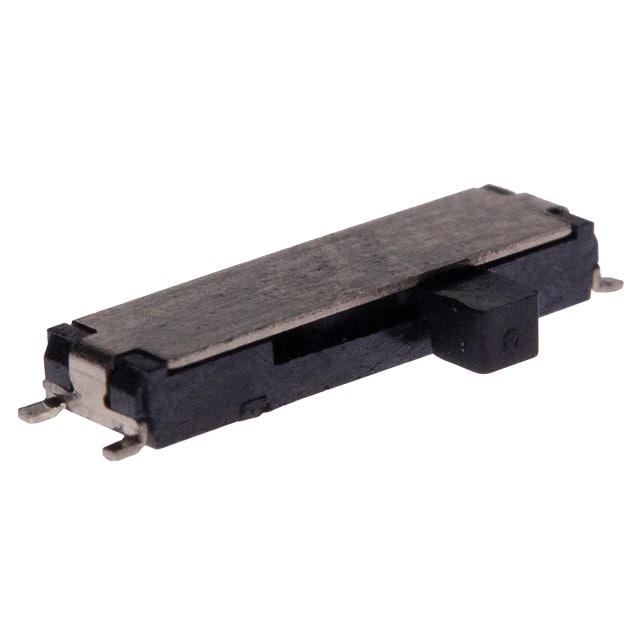

The E-Switch EG1315AA is a slide switch designed for surface mount applications. It offers an SP3T (Single Pole Triple Throw) contact arrangement with an On-On-On function.
This switch is rated for 25mA at 24VDC and has an electrical life of 10,000 cycles. Key specifications include a contact resistance of 70mΩ maximum and an insulation resistance of 1MΩ minimum at 100VDC. The dielectric strength is 100VAC for one minute.
With an operating temperature range of -20°C to 70°C and a storage temperature range of -40°C to 85°C, the EG1315AA is suitable for various environmental conditions. It features a travel distance of 1.50mm and an actuation force specified for different position transitions.
The surface mount, right-angle mounting type and gull wing termination style facilitate integration into PC board designs. This slide switch is ideal for applications requiring compact size and reliable switching.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The E-Switch EG1315AA slide switch is rated for 25mA at 24VDC.
The operating temperature range for the EG1315AA is -20°C to 70°C.
The EG1315AA slide switch uses a surface mount, right angle mounting type.
The EG1315AA features an SP3T contact arrangement with an On-On-On switch function.
