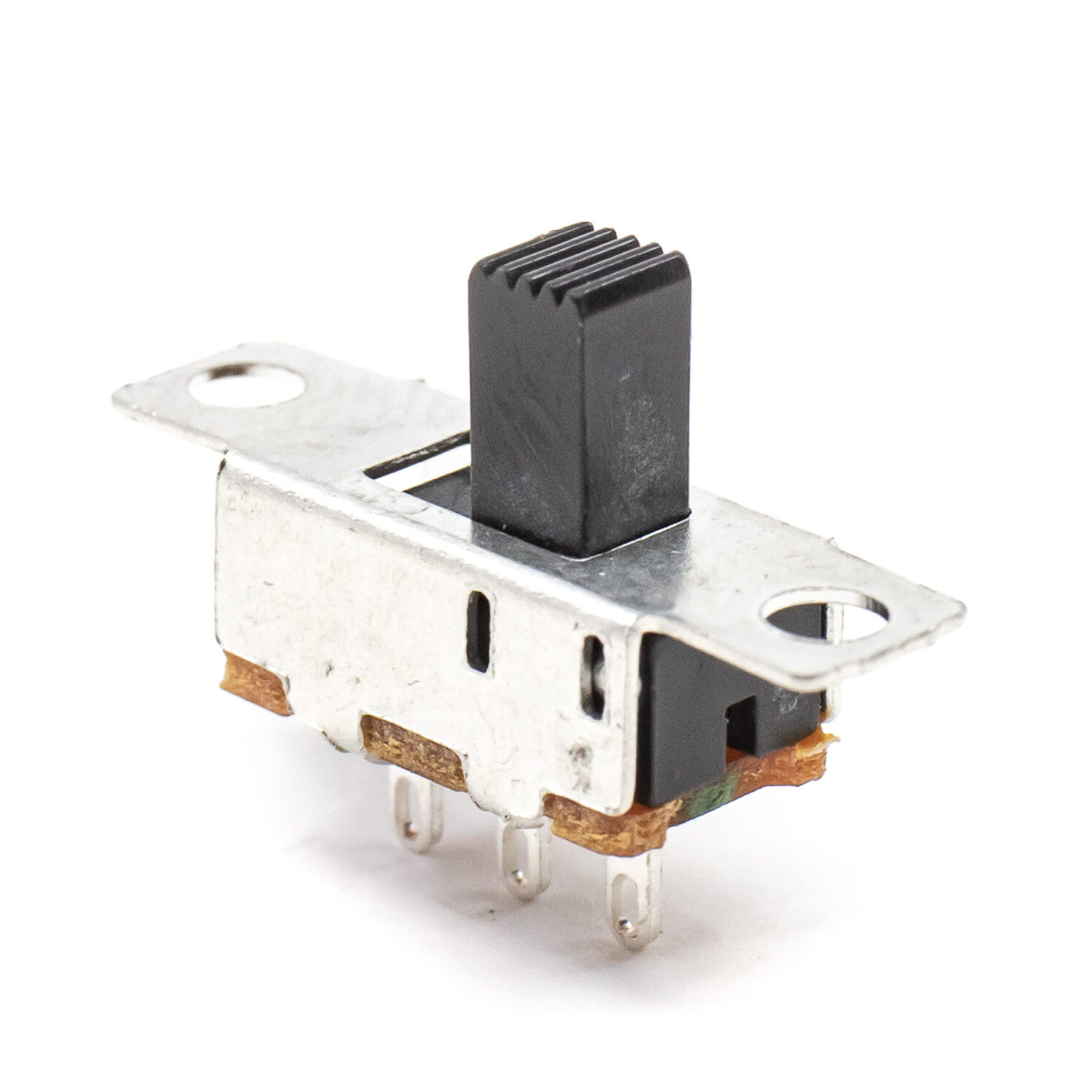

EG1218 The E-Switch EG1218 is a subminiature slide switch featuring a SPDT circuit and On-On function. It is rated for 200mA at 30VDC.
Mfr Part #:

EG1218

Available from 2 distributors
Mfr Name: E-Switch
E-Switch
The E-Switch EG1218 is a subminiature slide switch featuring a SPDT circuit and On-On function. It is rated for 200mA at 30VDC.
✓ Total Stock: 11 pcs
$ Price Range: $0.75

EG1218 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
7 pcs
On Request
7 pcs On Request 1 On Request On Request On Request On Request On Request
Trace Tec ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EG1218 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Length
Actuator Type
Circuit
Contact Finish
Contact Material
Contact Timing
Current Rating (Amps)
Mounting Type
Operating Temperature
Switch Function
Termination Style
Voltage Rating
View Similar Products (0)

EG1218 Description

Short technical summary and product information.

The EG1218 from E-Switch is a subminiature slide switch designed for through-hole mounting. This switch features a Single Pole Double Throw (SPDT) circuit with a non-shorting contact timing.



It is rated for a current of 200mA at 30VDC and has a contact finish of silver over a copper alloy contact material. The actuator is a standard type with a length of 2.00mm. The operating temperature range for this switch is -20°C to 70°C.



This slide switch is suitable for various applications requiring reliable switching in a compact form factor. Its through-hole termination style with PC pins ensures secure board mounting.

EG1218 Quick Information

Product Type: Slide Switch
Series: EG Series
Canonical Name: EG1218 Subminiature Slide Switch
Subcategory: Subminiature Slide Switch

EG1218 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EG1218 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

EG1218 Features

  • SPDT circuit with On-On function.
  • Rated for 200mA at 30VDC.
  • Through hole mounting with PC pin termination.
  • Operates from -20°C to 70°C.
  • Subminiature size for compact applications.

EG1218 Applications

  • Ideal for control panel functions.
  • Used in portable electronic devices.
  • Suitable for automation equipment.
  • Applicable in consumer electronics.

EG1218 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the current rating of the EG1218 slide switch?

The EG1218 slide switch has a current rating of 200mA.

What is the voltage rating for the E-Switch EG1218?

The EG1218 slide switch is rated for 30VDC.

What type of circuit does the EG1218 switch have?

The EG1218 switch features a SPDT circuit.

What is the operating temperature range for the EG1218 slide switch?

The EG1218 slide switch operates between -20°C and 70°C.

How is the EG1218 slide switch mounted?

The EG1218 slide switch is designed for through-hole mounting.

What termination style does the EG1218 use?

The EG1218 slide switch uses PC pin termination.
