| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
23 pcs
|
23 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Base Resonator | |
| Current | |
| Current - Supply | |
| Frequency | |
| Frequency Stability | |
| Function | |
| Height | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Oscillator Type | |
| Output | |
| Package / Case | |
| Supply Voltage | |
| Type | |
| Voltage | |
| Width |

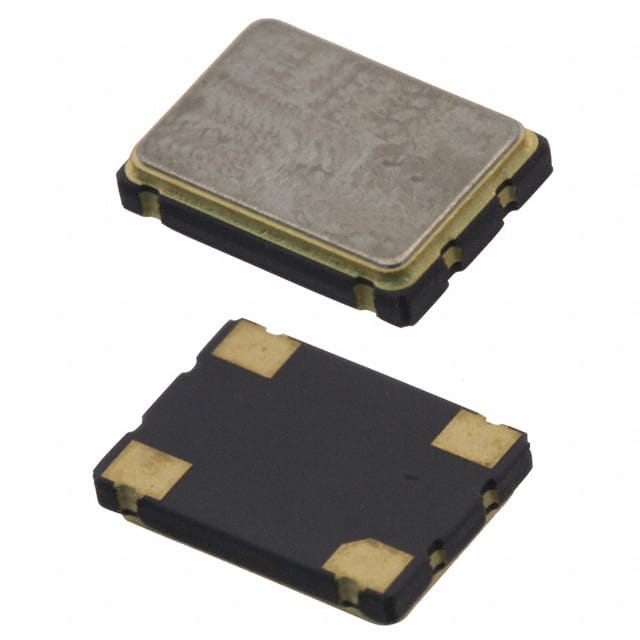

The Epson EG-2021CA 166.0000M-CHPNB is a surface mount SAW oscillator engineered for precise timing applications. It operates at a frequency of 166 MHz with a CMOS output, making it suitable for high-speed digital circuits. The oscillator requires a supply voltage of 2.5V and draws a current of 25 mA.
Key electrical characteristics include a frequency stability of ±100 ppm over an operating temperature range of 0°C to 70°C. The base resonator is a crystal, and the oscillator features an enable/disable function for power management.
Housed in a 4-SMD no-lead package, the device measures 7.00mm x 5.00mm x 1.40mm, allowing for compact PCB integration. It is RoHS3 and REACH compliant, with MSL Level 1 rating for unlimited shelf life.
This oscillator is ideal for use in networking, telecommunications, and data processing systems where reliable clock generation is critical.
2.5V
4-SMD, No Lead
0°C to 70°C
Yes, RoHS3 Compliant
±100 ppm
CMOS
Yes
