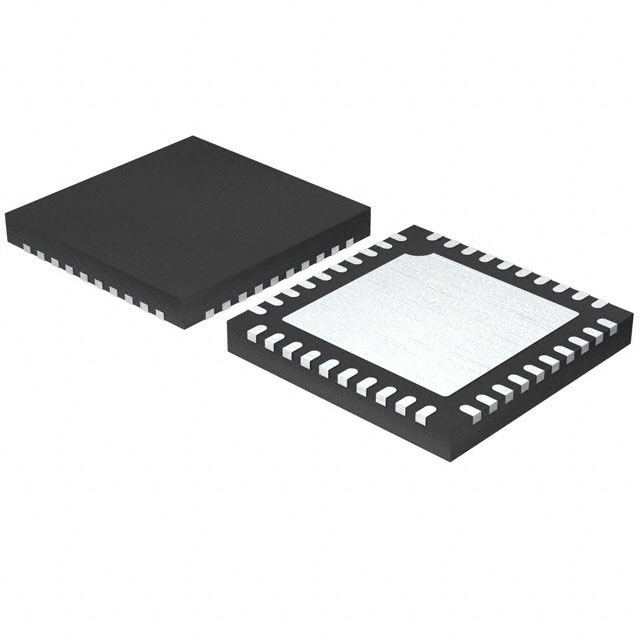

EFR32MG24A020F1536IM40-BR The Silicon Labs EFR32MG24A020F1536IM40-BR is an RF Transceiver IC with an integrated MCU. It operates at 2.4GHz and supports Bluetooth v5.3.
Mfr Part #:

EFR32MG24A020F1536IM40-BR

Available from 1 distributors
Mfr Name: Silicon Labs
Silicon Labs
The Silicon Labs EFR32MG24A020F1536IM40-BR is an RF Transceiver IC with an integrated MCU. It operates at 2.4GHz and supports Bluetooth v5.3.
✓ Total Stock: 89,800 pcs
$ Price Range: $710.26

EFR32MG24A020F1536IM40-BR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
89,800 pcs
On Request
89800 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EFR32MG24A020F1536IM40-BR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Data Rate (Max)
Frequency
GPIO
Memory Size
Modulation
Mounting Type
Operating Temperature
Power
Protocol
RF Family
Sensitivity
Serial Interfaces
Supplier Device Package
Tape & Reel
Type
Voltage
View Similar Products (0)

EFR32MG24A020F1536IM40-BR Description

Short technical summary and product information.

The EFR32MG24A020F1536IM40-BR from Silicon Labs is a versatile RF Transceiver IC featuring an integrated microcontroller. This component operates in the 2.4GHz frequency band and supports the Bluetooth v5.3 protocol, making it suitable for a wide range of wireless applications.



Key electrical specifications include an output power of 19.5dBm and a sensitivity of -94.8dBm. It operates with a supply voltage ranging from 1.71V to 3.8V. The device offers a maximum data rate of 2Mbps and supports multiple modulation schemes such as 2FSK, 2GFSK, DSSS, GMSK, MSK, and O-QPSK. Memory is provided with 1536kB of Flash and 192kB of RAM.



Designed for surface mounting, the EFR32MG24A020F1536IM40-BR comes in a 40-VFQFN Exposed Pad package, with the supplier device package specified as 40-QFN (5x5). It features 26 GPIO pins and supports various serial interfaces including ADC, GPIO, I²C, I²S, SPI, IrDA, and UART. The operating temperature range is -40°C to 125°C (TA).



This RF transceiver IC is suitable for applications requiring reliable wireless communication in the 2.4GHz band, leveraging its integrated MCU for complex control and processing tasks.

EFR32MG24A020F1536IM40-BR Quick Information

Product Type: RF Transceiver IC
Canonical Name: EFR32MG24A020F1536IM40-BR RF Transceiver IC with MCU
Subcategory: RF Transceiver ICs

EFR32MG24A020F1536IM40-BR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EFR32MG24A020F1536IM40-BR Estimated Pricing

Qty Low High
1+ $710.26 $710.26

Estimated market price range - modelled values for guidance only, not live distributor offers.

EFR32MG24A020F1536IM40-BR Features

  • 2.4GHz RF Transceiver IC with integrated MCU.
  • Supports Bluetooth v5.3 protocol.
  • High output power of 19.5dBm.
  • Wide operating voltage range of 1.71V to 3.8V.
  • Surface mountable in 40-VFQFN Exposed Pad package.

EFR32MG24A020F1536IM40-BR Applications

  • Ideal for IoT device connectivity.
  • Suitable for wireless sensor networks.
  • Used in smart home automation.
  • Applications requiring 2.4GHz communication.

EFR32MG24A020F1536IM40-BR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the EFR32MG24A020F1536IM40-BR?

The operating voltage is 1.71V to 3.8V.

What package type is the EFR32MG24A020F1536IM40-BR available in?

It is available in a 40-VFQFN Exposed Pad package.

What is the operating temperature range for this RF Transceiver IC?

The operating temperature range is -40°C to 125°C (TA).

What is the RoHS status of the EFR32MG24A020F1536IM40-BR?

The RoHS status is RoHS3 Compliant.

What is the maximum data rate for the EFR32MG24A020F1536IM40-BR?

The maximum data rate is 2Mbps.

What is the output power of the EFR32MG24A020F1536IM40-BR?

The output power is 19.5dBm.

Which wireless protocols does the EFR32MG24A020F1536IM40-BR support?

It supports Bluetooth v5.3.
