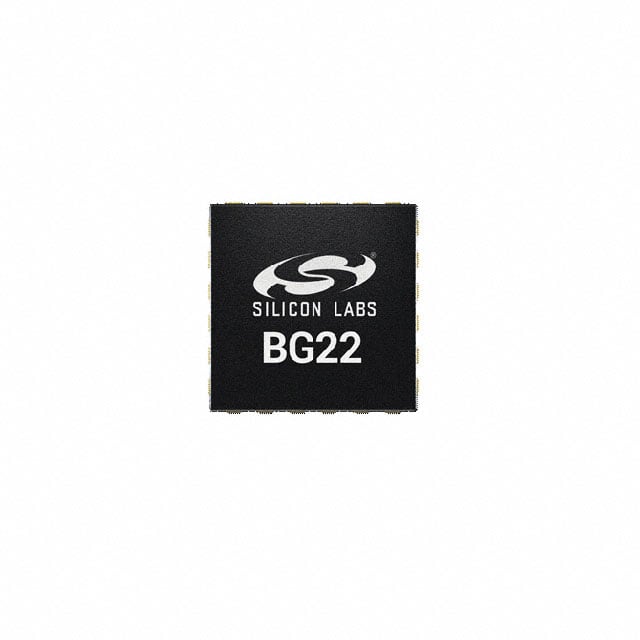

EFR32BG22C224F512GN32-CR The Silicon Labs EFR32BG22C224F512GN32-CR is a Wireless Gecko SoC ideal for energy-friendly Bluetooth networking. It features a 76.8 MHz ARM Cortex-M33 core and a 2.4 GHz radio.
Mfr Part #:

EFR32BG22C224F512GN32-CR

Available from 1 distributors
Mfr Name: Silicon Labs
Silicon Labs
The Silicon Labs EFR32BG22C224F512GN32-CR is a Wireless Gecko SoC ideal for energy-friendly Bluetooth networking. It features a 76.8 MHz ARM Cortex-M33 core and a 2.4 GHz radio.
✓ Total Stock: 20,000 pcs
$ Price Range: $710.26

EFR32BG22C224F512GN32-CR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
20,000 pcs
On Request
20000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EFR32BG22C224F512GN32-CR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Core Processor
Current
Data Rate (Max)
Frequency
GPIO
Memory Size
Modulation
Mounting Type
Operating Temperature
Power
Protocol
RF Family
Sensitivity
Serial Interfaces
Storage Temperature
Supplier Device Package
Supplier Package
Tape & Reel
Type
Voltage
View Similar Products (0)

EFR32BG22C224F512GN32-CR Description

Short technical summary and product information.

The EFR32BG22C224F512GN32-CR from Silicon Labs is part of the Wireless Gecko portfolio, designed for energy-friendly Bluetooth networking in IoT devices. This single-die solution integrates a 76.8 MHz ARM Cortex-M33 core with DSP extensions and a floating-point unit, alongside a high-performance 2.4 GHz radio.



Key features include up to 512 kB of flash program memory and 32 kB of RAM. The radio supports Bluetooth v5.2, offering a maximum TX power of 6 dBm and a sensitivity down to -106.7 dBm at 125 kbps GFSK. It operates within a frequency range of 2.4GHz to 2.4835GHz and supports data rates up to 2 Mbps.



This SoC is suitable for applications such as asset tags, beacons, remote controls, portable medical devices, and connected home products. It is supplied in a 32-TQFN (4x4) package and is designed for surface mount applications. The operating temperature range is -40°C to 85°C.



Security features include Secure Boot with Root of Trust and Secure Loader (RTSL). The device supports various serial interfaces including ADC, I²C, I²S, PWM, SPI, IrDA, UART, and USART, with 18 GPIO pins available.

EFR32BG22C224F512GN32-CR Quick Information

Product Type: RF Transceiver IC
Series: EFR32BG22
Canonical Name: EFR32BG22 Wireless Gecko SoC
Subcategory: Wireless Transceiver

EFR32BG22C224F512GN32-CR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EFR32BG22C224F512GN32-CR Estimated Pricing

Qty Low High
1+ $710.26 $710.26

Estimated market price range - modelled values for guidance only, not live distributor offers.

EFR32BG22C224F512GN32-CR Features

  • Energy-friendly Bluetooth networking for IoT devices.
  • 76.8 MHz ARM Cortex-M33 core with DSP.
  • Up to 512 kB flash and 32 kB RAM.
  • 2.4 GHz radio with 6 dBm TX power.
  • Secure Boot with Root of Trust.

EFR32BG22C224F512GN32-CR Applications

  • Ideal for asset tags and beacons.
  • Suitable for remote control applications.
  • Used in portable medical devices.
  • Enables Bluetooth Mesh low power nodes.
  • Applicable for connected home devices.

EFR32BG22C224F512GN32-CR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the EFR32BG22C224F512GN32-CR?

The operating voltage range is 1.71V to 3.8V.

What package type is the EFR32BG22C224F512GN32-CR supplied in?

It is supplied in a 32-TQFN Exposed Pad package.

What is the operating temperature range for this SoC?

The operating temperature range is -40°C to 85°C.

What is the RoHS status of the EFR32BG22C224F512GN32-CR?

The RoHS status is RoHS3 Compliant.

What is the maximum TX power of the EFR32BG22C224F512GN32-CR?

The maximum TX power is 6 dBm.

What is the maximum data rate supported by this device?

The maximum data rate supported is 2 Mbps.

What security features are included in this SoC?

It includes Secure Boot with Root of Trust and Secure Loader (RTSL).
