| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,298 pcs
|
1298 pcs | On Request | 1 | On Request | On Request | 06+ | On Request | On Request | |
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Frequency | |
| Frequency Stability | |
| Frequency Tolerance | |
| Height | |
| Length | |
| Load Capacitance | |
| Mounting Type | |
| Operating Temperature | |
| Packaging Style | |
| Type | |
| Width |

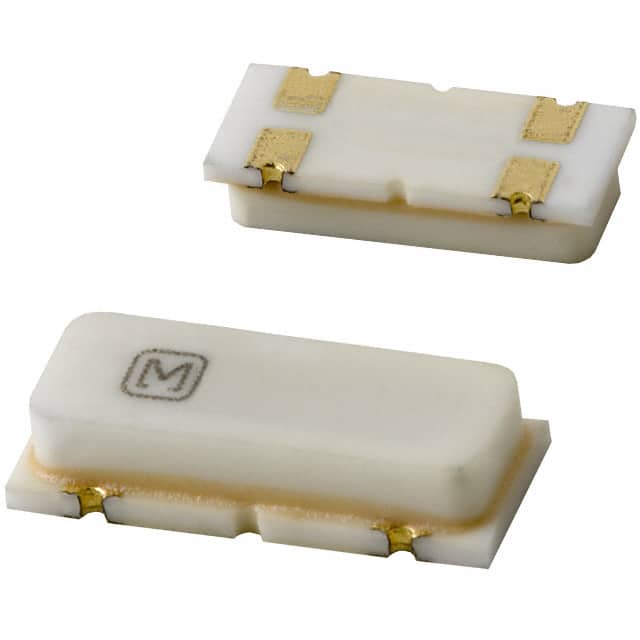

The Panasonic EFO-P6004E5 is a ceramic resonator from the EFOP series, designed for surface mount applications. It operates at a nominal frequency of 6 MHz with a frequency tolerance of ±0.5% and a frequency stability of ±0.3% over the temperature range of -20°C to +80°C. The component is housed in a 2-SMD, non-standard package measuring 7.80mm x 3.20mm x 1.80mm, suitable for reflow soldering.
This resonator features a ceramic construction with moisture-proof sealing and high reliability against soldering heat and mechanical stress. The reference load capacitance is 33 pF, as specified for the EFOP series at this frequency range. It is RoHS3 compliant and has an MSL rating of 1 (unlimited).
Typical applications include clock generation for microprocessors and carrier circuits in telecommunication equipment such as telephone-to-telephone or personal computer-to-printer interfaces. The part is supplied in embossed taping packaging, indicated by the 'E' suffix in the part number.
-20°C to 80°C.
2-SMD, Non-Standard.
Yes, RoHS3 Compliant.
±0.5%.
±0.3% over -20°C to +80°C.
Surface Mount.
33 pF (reference value).
