| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
780 pcs
|
780 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Built-in Capacitance | |
| Capacitance | |
| Features | |
| Frequency | |
| Frequency Stability | |
| Frequency Temperature Characteristics | |
| Frequency Tolerance | |
| Height | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Type | |
| Width |

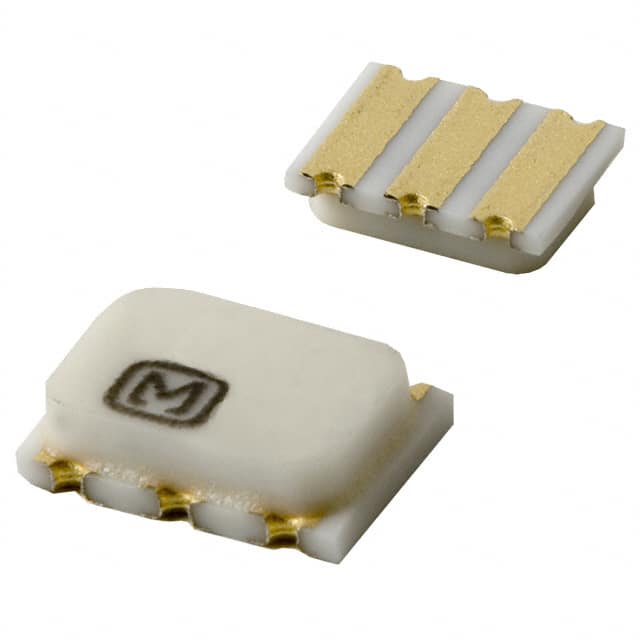

The Panasonic EFO-BM1605E5 is a ceramic resonator with a built-in capacitor, designed for surface mount applications. It operates at a nominal frequency of 16 MHz with a frequency tolerance of ±0.5% and a frequency stability of ±0.3%. The built-in capacitance is 18 pF, simplifying oscillator circuit design by reducing external components.
The resonator is housed in a 3-SMD, Non-Standard package measuring 4.10 mm x 2.90 mm x 1.19 mm. It supports an operating temperature range of -20°C to 80°C. The surface mount design is suitable for reflow soldering and offers high reliability against soldering heat and mechanical stress.
Typical applications include clock generators for microprocessors and carrier circuits in telecommunication equipment. The component is RoHS compliant and has a moisture sensitivity level of MSL 1 (unlimited).
The operating temperature range is -20°C to 80°C.
3-SMD, Non-Standard.
Yes, RoHS3 Compliant.
16 MHz with a frequency tolerance of ±0.5%.
18 pF.
Surface Mount.
4.10 mm x 2.90 mm x 1.19 mm.
