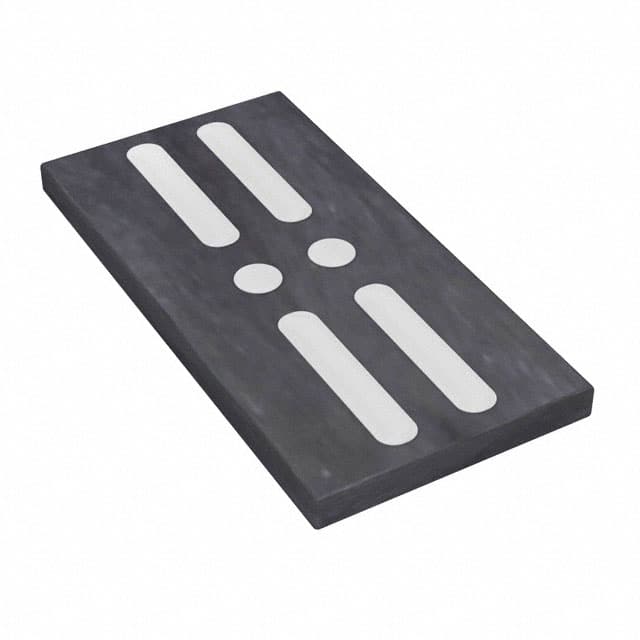

The EFC8811R-TF is a dual N-Channel common drain MOSFET manufactured by On Semiconductor. It is designed for 1-cell lithium-ion battery protection and charging/discharging switch applications. The device features a logic level gate with 2.5V drive capability and an ESD diode-protected gate rated for 2 kV HBM.
Key electrical specifications include a maximum source-to-source voltage of 12 V, a continuous source current of 27 A, and a pulse current rating of 100 A. The on-state resistance is specified at multiple gate voltages, with a typical value of 2.3 mΩ at 4.5 V and maximum of 3.2 mΩ. The gate threshold voltage ranges from 0.5 V to 1.3 V. The device is housed in a 6-SMD, No Lead package (6-CSP 1.77x3.54) and is surface mountable.
Thermal characteristics include a maximum junction temperature of 150 °C, total power dissipation of 2.5 W (when mounted on a ceramic substrate), and a junction-to-ambient thermal resistance of 50 °C/W. The storage temperature range is -55 to +150 °C.
The EFC8811R-TF is compliant with RoHS3, Halogen Free, and Pb-Free standards, making it suitable for environmentally sensitive designs. It is ideal for portable device power management and battery protection circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.66 | $1.66 |
| 10+ | $1.05 | $1.05 |
| 100+ | $0.70 | $0.70 |
| 500+ | $0.55 | $0.55 |
| 1,000+ | $0.50 | $0.50 |
| 2,000+ | $0.46 | $0.46 |
| 5,000+ | $0.42 | $0.42 |
| 10,000+ | $0.39 | $0.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12 V.
6-SMD, No Lead (6-CSP 1.77x3.54).
Junction temperature up to 150 °C, storage temperature from -55 to +150 °C.
Yes, RoHS3 compliant, also Halogen Free and Pb-Free.
27 A DC.
Typical 2.3 mΩ, maximum 3.2 mΩ.
0.5 V to 1.3 V.
