| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15,000 pcs
|
15000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Configuration | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| FET Feature | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Rds On (Max) @ Id, Vgs | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs(th) (Max) @ Id |
The EFC4K105NUZTDG is a dual N-channel common drain MOSFET designed for battery protection applications, particularly 1-2 cell lithium-ion battery charging and discharging switches. Manufactured by On Semiconductor, this device integrates two N-channel MOSFETs in a common drain configuration.
It features a source-to-source breakdown voltage (V(BR)SSS) of 22V minimum, with a maximum continuous source current of 25A at 25°C and pulsed current capability up to 100A. The on-state resistance (RSS(on)) is specified at multiple gate voltages: 3.55mΩ maximum at Vgs=4.5V, 3.65mΩ at 3.8V, 5.3mΩ at 3.1V, and 7.2mΩ at 2.5V, enabling logic-level gate drive. Gate threshold voltage ranges from 0.4V to 1.3V. The device includes an ESD diode-protected gate.

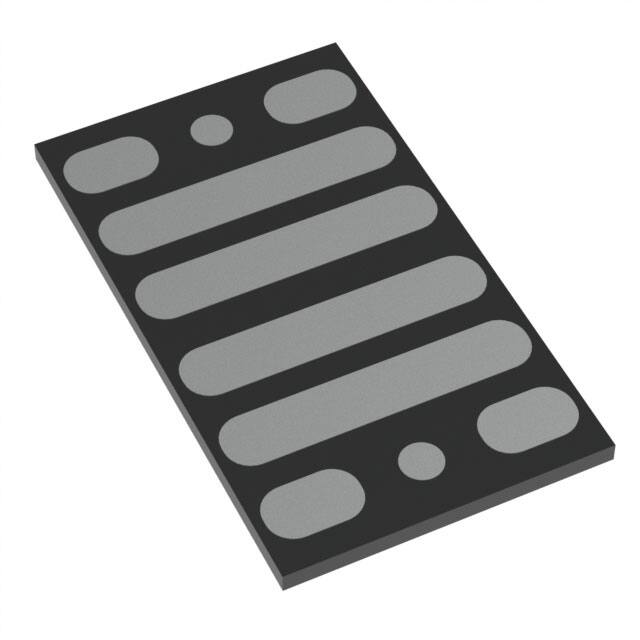

The MOSFET is housed in a 10-WLCSP (Wafer Level Chip Scale Package) measuring 3.40 x 1.96 x 0.10 mm, with a case code of 567PL. It is surface mountable. Maximum power dissipation is 2.5W when mounted on a ceramic substrate, with a junction-to-ambient thermal resistance of 50°C/W. Operating junction temperature range is -55°C to 150°C.
The device is Pb-Free, Halogen Free, and RoHS compliant. It is suitable for portable machine power switches and 1-2 cell lithium-ion battery protection circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.34 | $1.34 |
| 10+ | $0.85 | $0.85 |
| 100+ | $0.56 | $0.56 |
| 500+ | $0.44 | $0.44 |
| 1,000+ | $0.40 | $0.40 |
| 2,000+ | $0.37 | $0.37 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
22V minimum at Id=1mA, Vgs=0V.
10-SMD, No Lead (10-WLCSP) with dimensions 3.40 x 1.96 x 0.10 mm.
Maximum junction temperature is 150°C, storage temperature range is -55°C to 150°C.
Yes, the device is RoHS compliant, Pb-Free, and Halogen Free.
25A at Ta=25°C.
3.55mΩ maximum at Id=5A, Vgs=4.5V.
0.4V to 1.3V at Vss=10V, Id=1mA.
