EFC4615R-TR The EFC4615R-TR is an N-Channel MOSFET from On Semiconductor with a drain-to-source voltage of 24V and continuous source current of 6A. It is designed for general-purpose switching and is optimized for LiB charging and discharging switch applications.
Mfr Part #:

EFC4615R-TR

Available from 2 distributors
Mfr Name: On Semiconductor
On Semiconductor
The EFC4615R-TR is an N-Channel MOSFET from On Semiconductor with a drain-to-source voltage of 24V and continuous source current of 6A. It is designed for general-purpose switching and is optimized for LiB charging and discharging switch applications.
✓ Total Stock: 1,052,732 pcs
$ Price Range: $0.14 - $0.15

EFC4615R-TR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
1,035,000 pcs
On Request
1035000 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
17,732 pcs
On Request
17732 pcs On Request 1 On Request On Request 1407+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EFC4615R-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Supplier Device Package
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

EFC4615R-TR Description

Short technical summary and product information.

The EFC4615R-TR is an N-Channel silicon MOSFET from On Semiconductor, designed for general-purpose switching applications. It features a common-drain configuration with a source-to-source breakdown voltage of 24V and a continuous source current rating of 6A at 25°C. The device supports pulsed source current up to 60A.



This MOSFET is optimized for low-voltage operation with gate drive voltages as low as 2.5V, making it well-suited for battery-powered systems. The static source-to-source on-state resistance (RSS(on)) is specified at multiple gate voltages, with a typical value of 27mΩ at VGS=4.5V and IS=3A. Switching performance includes typical turn-on delay of 13ns and rise time of 235ns.

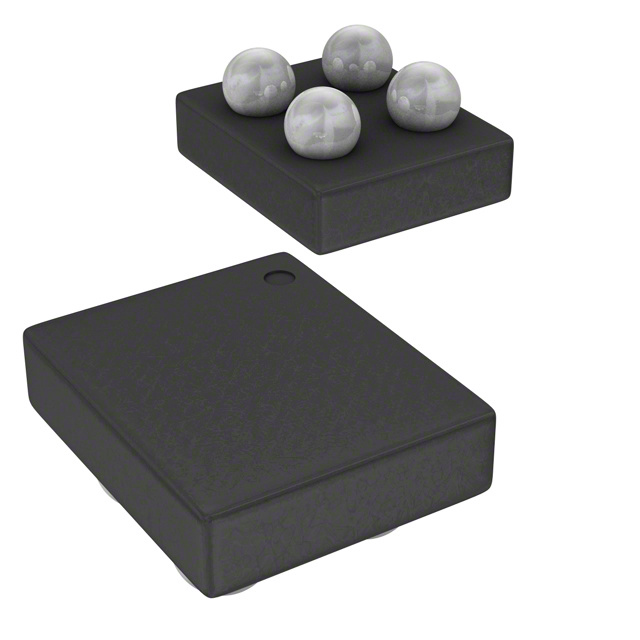

The EFC4615R-TR is housed in a compact 4-XFBGA, FCBGA package (EFCP1515-4CC-037) and is surface mountable. It is supplied in tape and reel packaging with a standard quantity of 5000 pieces per reel. The device is RoHS compliant and has an MSL rating of 1 (unlimited).

EFC4615R-TR Quick Information

Product Type: MOSFET
Series: EFC4615R
Canonical Name: On Semiconductor EFC4615R-TR N-Channel MOSFET, 24V, 6A, Surface Mount
Subcategory: Single N-Channel

EFC4615R-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EFC4615R-TR Estimated Pricing

Qty Low High
5,000+ $0.15 $0.15
10,000+ $0.14 $0.14

Estimated market price range - modelled values for guidance only, not live distributor offers.

EFC4615R-TR Features

  • N-Channel MOSFET with 24V drain-to-source voltage.
  • Continuous source current rating of 6A at 25°C.
  • Low on-state resistance of 27mΩ typical at 4.5V.
  • Supports gate drive voltages as low as 2.5V.
  • Compact surface-mount EFCP1515-4CC-037 package.

EFC4615R-TR Applications

  • Ideal for LiB charging and discharging switches.
  • Suitable for general-purpose low-voltage switching.
  • Used in battery-powered portable electronics.
  • Designed for power management in compact devices.

EFC4615R-TR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum drain-to-source voltage of the EFC4615R-TR?

The maximum source-to-source breakdown voltage is 24V.

What is the continuous source current rating?

The continuous source current is 6A at 25°C ambient temperature.

What is the on-state resistance of this MOSFET?

The static source-to-source on-state resistance is typically 27mΩ at VGS=4.5V and IS=3A, with a maximum of 31mΩ.

What package does the EFC4615R-TR come in?

It comes in a 4-XFBGA, FCBGA surface-mount package, specifically the EFCP1515-4CC-037.

What is the operating temperature range?

The channel temperature range is -55°C to +150°C.

Is the EFC4615R-TR RoHS compliant?

Yes, it is listed as RoHS3 compliant.
