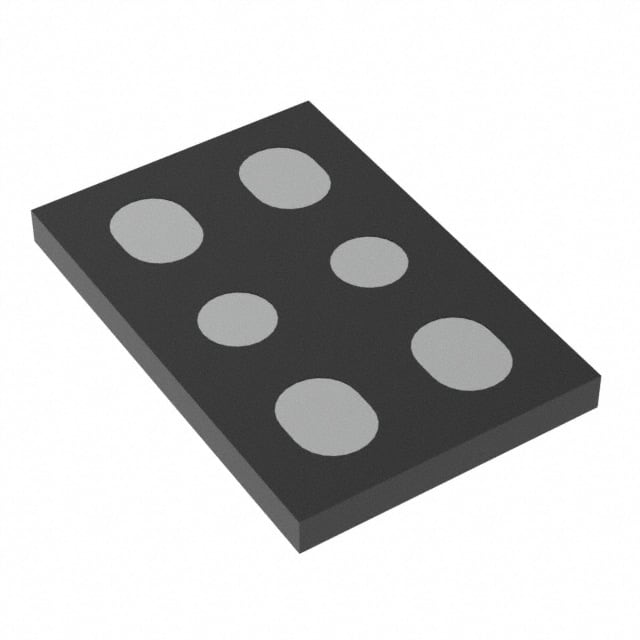

Mfr Part #:

EFC2K101NUZTDG

Name: EFC2K101NUZTDG
Brand: On Semiconductor
SKU: EFC2K101NUZTDG

Mfr Name: On Semiconductor

Description:

NCH 12V 15A WLCSP DUAL

Stock on Request

EFC2K101NUZTDG Description

Short technical summary and product information.

NCH 12V 15A WLCSP DUAL

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Transistors - FETs, MOSFETs - Arrays
Manufacturer Name	On Semiconductor
Configuration	2 N-Channel (Dual) Common Drain
Current	15A (Ta)
Drain to Source Voltage (Vdss)	12V
FET Feature	Logic Level Gate, 2.5V Drive
Gate Charge (Qg) (Max) @ Vgs	16nC @ 3.8V
Mounting Type	Surface Mount
Operating Temperature	150°C (TJ)
Power	1.4W (Ta)
Rds On (Max) @ Id, Vgs	6.2mOhm @ 5A, 4.5V
Supplier Device Package	6-WLCSP (1.79x1.18)
Technology	MOSFET (Metal Oxide)
Vgs(th) (Max) @ Id	1.3V @ 1mA
