| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
45 pcs
|
45 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Air Flow | |
| Approval Agency | |
| Bearing Type | |
| Fan Type | |
| Features | |
| Height | |
| Lead Style | |
| Noise | |
| Operating Temperature | |
| Power (Watts) | |
| RPM | |
| Static Pressure | |
| Termination | |
| Voltage | |
| Weight | |
| Width |

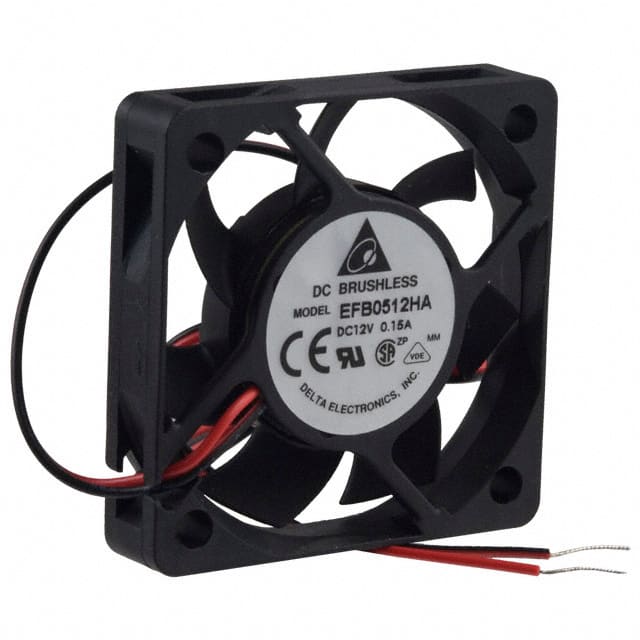

The Delta Electronics EFB0512HA is a 12VDC tubeaxial fan designed for efficient thermal management in compact electronic enclosures. With a 50x50mm frame and 10mm thickness, this fan delivers 11.4 CFM (0.319 m³/min) of airflow at 5500 RPM, generating a static pressure of 0.167 in H2O (41.6 Pa).
Operating at a noise level of 30.0 dB(A), the EFB0512HA is suitable for noise-sensitive applications. It features a ball bearing system for extended reliability and includes locked rotor protection for safe operation. The fan is rated for 1.2 W power consumption and operates over a temperature range of -10°C to 70°C.
The fan terminates with 2 wire leads for easy integration. It carries approvals from CE, CSA, UL, and VDE, and weighs 25.85 g. This model is ideal for cooling applications in telecommunications equipment, industrial controls, and computer peripherals where space is limited.
| Qty | Low | High |
|---|---|---|
| 1+ | $12.32 | $12.32 |
| 10+ | $9.98 | $9.98 |
| 25+ | $9.10 | $9.10 |
| 50+ | $8.47 | $8.47 |
| 100+ | $7.88 | $7.88 |
| 492+ | $7.45 | $7.45 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12 VDC
-10 °C to 70 °C
RoHS3 Compliant (unverified)
11.4 CFM (0.319 m³/min)
Ball
30.0 dB(A)
CE, CSA, UL, VDE
