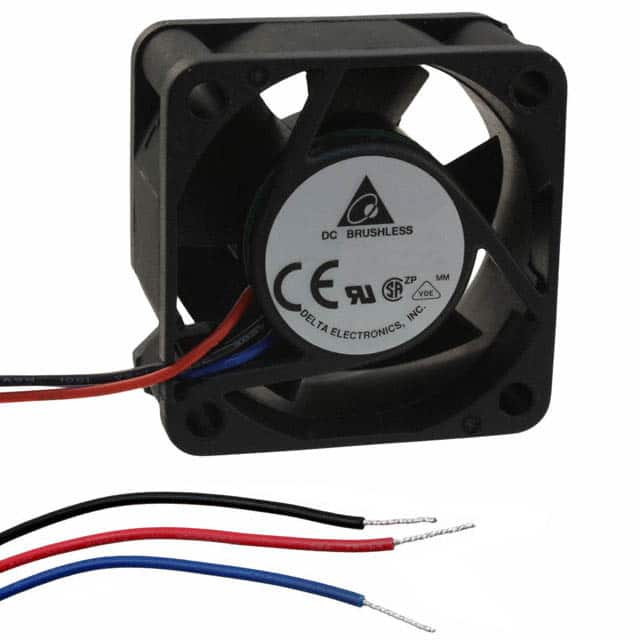

EFB0405VHD-R00 Delta Electronics EFB0405VHD-R00 tubeaxial fan, 40mm square by 20mm wide, 5VDC, ball bearing, 9000 RPM, 10.1 CFM airflow.
Mfr Part #:

EFB0405VHD-R00

Available from 2 distributors
Mfr Name: Delta Electronics
Delta Electronics
Delta Electronics EFB0405VHD-R00 tubeaxial fan, 40mm square by 20mm wide, 5VDC, ball bearing, 9000 RPM, 10.1 CFM airflow.
✓ Total Stock: 346 pcs

EFB0405VHD-R00 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
173 pcs
On Request
173 pcs On Request 1 On Request On Request On Request On Request On Request
RAD ✓
Non-Authorised Inventory information
173 pcs
On Request
173 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EFB0405VHD-R00 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Air Flow
Approval Agency
Bearing Type
Fan Type
Features
Lead Style
Noise
Operating Temperature
Power (Watts)
RPM
Static Pressure
Termination
Voltage
Weight
Width
View Similar Products (0)

EFB0405VHD-R00 Description

Short technical summary and product information.

The Delta Electronics EFB0405VHD-R00 is a 40mm square tubeaxial fan with a 20mm width, designed for forced air cooling in electronic systems. It operates at 5VDC and delivers 9000 RPM, producing 10.1 CFM (0.283 m³/min) of airflow with a static pressure of 0.416 in H2O (103.6 Pa). The fan uses ball bearings for long life and reliability, and features a locked rotor sensor for fault detection. It terminates with 3 wire leads for tachometer output. The operating temperature range is 14 to 158°F (-10 to 70°C). The fan weighs 0.073 lb (33.11 g).

EFB0405VHD-R00 Quick Information

Product Type: DC Brushless Fan
Canonical Name: Delta Electronics EFB0405VHD-R00 Tubeaxial Fan
Subcategory: DC Brushless Fan

EFB0405VHD-R00 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EFB0405VHD-R00 Features

  • 40mm square tubeaxial fan, 20mm width.
  • 5VDC operation with 9000 RPM speed.
  • Ball bearing for extended service life.
  • Locked rotor sensor for fault detection.
  • 3 wire leads including tachometer output.

EFB0405VHD-R00 Applications

  • Cooling of compact electronic enclosures.
  • Thermal management in telecom equipment.
  • Airflow for industrial control systems.
  • Used in medical device ventilation.

EFB0405VHD-R00 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage of the EFB0405VHD-R00?

The fan operates at 5VDC.

What is the operating temperature range?

The operating temperature range is 14 to 158°F (-10 to 70°C).

Is the EFB0405VHD-R00 RoHS compliant?

The part is listed as RoHS3 Compliant, but this is unverified.

What bearing type does this fan use?

It uses ball bearings.

What is the airflow and static pressure?

Airflow is 10.1 CFM (0.283 m³/min) and static pressure is 0.416 in H2O (103.6 Pa).

What is the noise level?

Noise level is 32.5 dB(A).
