| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accomodates a Fuse | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Features | |
| Filter Type | |
| Fuse Accommodation | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Panel Cutout Dimensions | |
| Switch Features | |
| Termination | |
| Termination Style | |
| Voltage Rating |

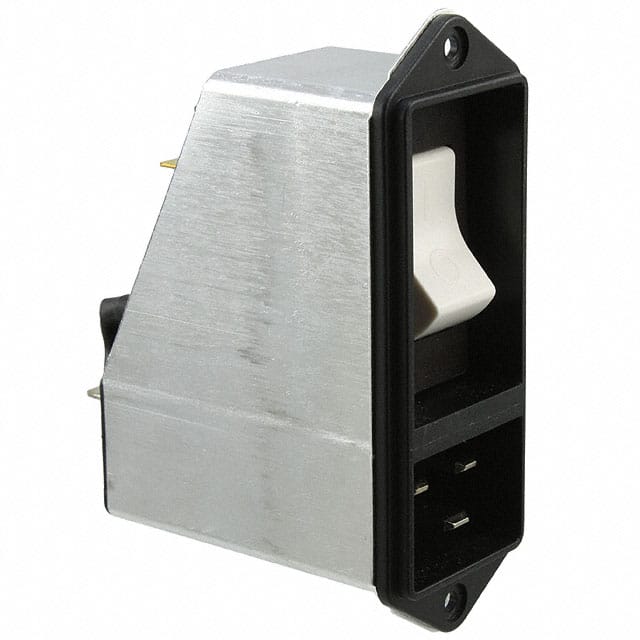

The EF12.0885.2110.01 from Schurter Inc. is a filtered power entry module (PEM) designed for commercial EMI/RFI filtering applications. It features an IEC 320-C20 connector style with a receptacle, male blades - module configuration. The module is rated for 15A continuous current at 250VAC, with an integrated circuit breaker and switch on-off functionality for safe power control.
This PEM is panel mountable with a flange, requiring a rectangular cutout of 33.90mm x 81.00mm. Termination is via quick connect tabs of 0.250" (6.3mm) for easy installation. The housing is shielded for electromagnetic compatibility and meets IP40 ingress protection. The module is constructed with materials that achieve UL94 V-0 flammability rating.
Designed for commercial equipment, this power entry module provides combined filtering, switching, and circuit protection in a single package. It is approved by cURus and ENEC, and is compliant with RoHS3 and REACH standards. The moisture sensitivity level is 1 (unlimited). Note: This module does not accommodate a fuse.
15A.
250VAC.
Panel Mount with Flange.
No, it does not accommodate a fuse.
IEC 320-C20.
IP40.
cURus and ENEC.
