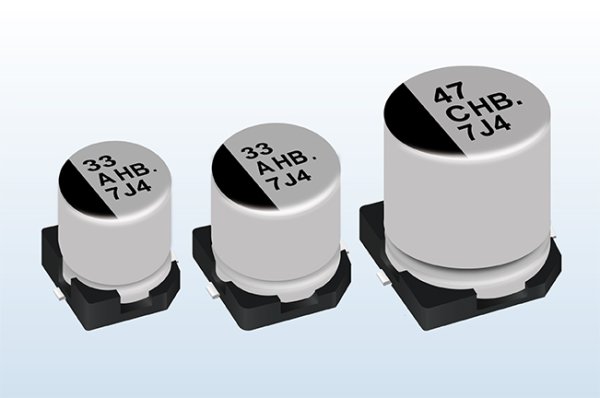

EEEHB1V220AP The Panasonic EEEHB1V220AP is a surface mount aluminum electrolytic capacitor with a capacitance of 22µF and a rated voltage of 35V. It features a wide operating temperature range.
Mfr Part #:

EEEHB1V220AP

Available from 1 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
The Panasonic EEEHB1V220AP is a surface mount aluminum electrolytic capacitor with a capacitance of 22µF and a rated voltage of 35V. It features a wide operating temperature range.
✓ Total Stock: 86 pcs
$ Price Range: $0.99

EEEHB1V220AP Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
86 pcs
On Request
86 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EEEHB1V220AP Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance
Diameter
Lead Style
Length
Mounting Type
Operating Temperature Range
Rated Voltage
SVHC Present
Tape & Reel
Weight
View Similar Products (0)

EEEHB1V220AP Description

Short technical summary and product information.

This Panasonic EEEHB1V220AP is a polarized aluminum electrolytic capacitor designed for surface mount applications. It offers a capacitance of 22µF and a rated voltage of 35V, making it suitable for various power supply and filtering circuits.



The capacitor operates within a temperature range of -40°C to +105°C and has a maximum leakage current of 7.7µA. The rated ripple current is 55mA at 120Hz. Its dimensions are 6.30mm in diameter and 5.80mm in length, with a weight of 0.32g.



The HB (High temp. reflow) series designation indicates its suitability for high-temperature reflow soldering processes. It is supplied in embossed carrier taping on a reel for automated assembly.

EEEHB1V220AP Quick Information

Product Type: Aluminum Electrolytic Capacitor
Series: HB (High temp. reflow) Series
Canonical Name: Panasonic EEEHB1V220AP Aluminum Electrolytic Capacitor
Subcategory: Aluminum Electrolytic Capacitor

EEEHB1V220AP Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

EEEHB1V220AP Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

EEEHB1V220AP Features

  • 22µF capacitance for general filtering.
  • 35V rated voltage for stable operation.
  • 7.7µA maximum leakage current.
  • 55mA rated ripple current at 120Hz.
  • Operates from -40°C to +105°C.

EEEHB1V220AP Applications

  • Suitable for general purpose power filtering.
  • Used in various electronic circuit designs.
  • Applicable in temperature-demanding environments.
  • Ideal for compact electronic devices.
  • Fits automated manufacturing processes.

EEEHB1V220AP FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance of the EEEHB1V220AP?

The capacitance of the EEEHB1V220AP is 22µF.

What is the rated voltage for the EEEHB1V220AP?

The rated voltage for the EEEHB1V220AP is 35V.

What is the operating temperature range of the EEEHB1V220AP?

The operating temperature range of the EEEHB1V220AP is -40°C to +105°C.

What is the maximum leakage current for the EEEHB1V220AP?

The maximum leakage current for the EEEHB1V220AP is 7.7µA.

What is the rated ripple current of this capacitor?

The rated ripple current is 55mA at 120Hz.

What are the dimensions of the EEEHB1V220AP?

The EEEHB1V220AP has a diameter of 6.3mm and a length of 5.8mm.

What is the mounting type for the EEEHB1V220AP?

The mounting type for the EEEHB1V220AP is Surface Mount.
