| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Orientation | |
| SVHC Present | |
| Termination | |
| Termination Style | |
| Tolerance |

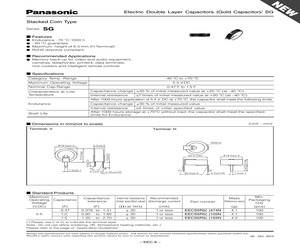

The Panasonic EEC-S5R5H105 is a high-performance supercapacitor designed for various electronic applications. It features a capacitance of 1 Farad and a rated voltage of 5.5V, making it suitable for energy storage and power backup solutions.
This supercapacitor boasts a low Equivalent Series Resistance (ESR) of 30 Ohms at 1kHz, ensuring efficient energy transfer. It operates within a temperature range of -25°C to 70°C and has a rated load life of 1000 hours at 70°C, indicating reliability in demanding environments.
The EEC-S5R5H105 is available in an axial, can - horizontal package and is designed for through-hole mounting. Its dimensions include a height of 6.50mm and a diameter of 19.00mm, with a lead spacing of 20mm. The tolerance for capacitance is -20% to +80%.
This component is part of Panasonic's SG Series, known for its quality and performance in energy storage applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.04 | $0.04 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The capacitance is 1 Farad.
The rated voltage is 5.5V.
The ESR is 30 Ohms at 1kHz.
The operating temperature range is -25°C to 70°C.
The load life is 1000 hours at 70°C.
It is designed for through-hole mounting.
The package type is Axial, Can - Horizontal.
