| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,822 pcs
|
4822 pcs | On Request | 1 | On Request | On Request | 07+ | On Request | On Request | |
|
3,500 pcs
|
3500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,100 pcs
|
1100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | 07+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Core Processor | |
| Frequency | |
| Graphics Acceleration | |
| Mounting Type | |
| Number of Cores | |
| Operating Temperature | |
| RAM Controllers | |
| Speed | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Voltage |

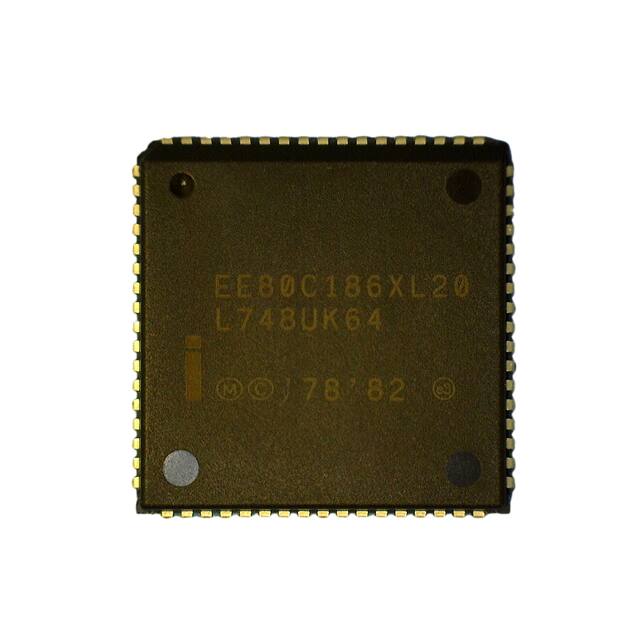

The Intel EE80C186XL20 is a high-integration, 16-bit embedded processor, offering a fully static, modular core based on the 80C186 architecture. This processor operates at a speed of 20MHz and requires a 5.0V supply voltage.
Key integrated features include a clock generator, two independent DMA channels, a programmable interrupt controller, and three programmable 16-bit timers. It also incorporates dynamic RAM refresh control and programmable memory/peripheral chip select logic. The processor supports direct addressing up to 1 MByte of memory and 64 Kbyte of I/O.
This component is available in a 68-pin PLCC (Plastic Leaded Chip Carrier) package and is designed for surface mount applications. It is suitable for embedded systems requiring a robust and integrated processing solution. The operating temperature range is specified as 0°C to 70°C (TA), with an extended range available from -40°C to 85°C.
The EE80C186XL20 is object code compatible with existing 8086/8088 software and includes 10 additional instructions. It also features power-save modes and system-level testing support.
The EE80C186XL20 operates at a speed of 20MHz.
The operating voltage for the EE80C186XL20 is 5.0V.
The EE80C186XL20 is available in a 68-PLCC package and a 68-LCC (J-Lead) package.
The standard operating temperature range is 0°C to 70°C (TA), with an extended range of -40°C to 85°C.
