| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Current | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Material | |
| Contact Rating (Current) | |
| Mounting Type | |
| Must Operate Voltage | |
| Operate Time | |
| Operating Temperature | |
| Relay Type | |
| Release Time | |
| Switching Voltage | |
| Termination Style |

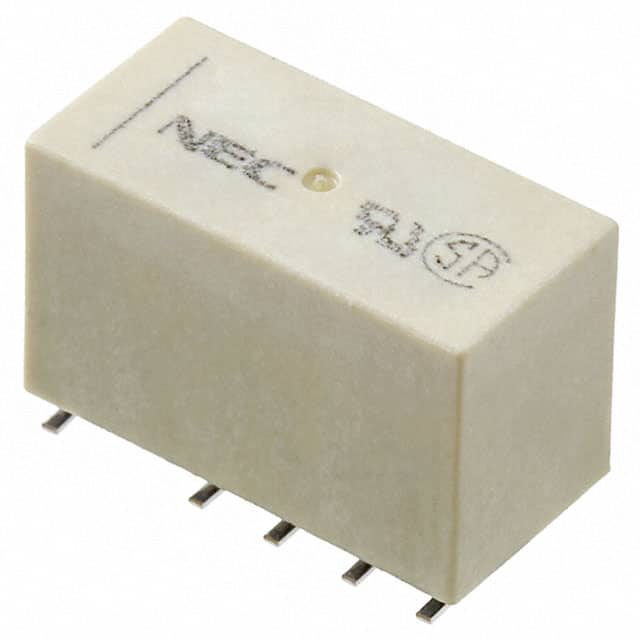

The Yageo EE2-3TNUH-L is a miniature signal relay from the EC2/EE2 series, designed for applications requiring compact and reliable switching. This relay features a DPDT (2 Form C) contact configuration with a contact rating of 2A.
It operates with a 3VDC coil voltage and has a low power consumption of less than 200 mW. The relay offers a fast operate time of 2 ms and a release time of 1 ms. It is suitable for switching voltages up to 250VAC and 220VDC.
The EE2-3TNUH-L is designed for surface mounting with a gull wing termination style. It operates within a temperature range of -40°C to 85°C. The relay also boasts a 1,500 V surge capacity and high breakdown voltage capabilities.
This relay is recognized by UL and CSA and is compliant with Part 68 of the FCC. It is available in tube or embossed tape and reel packaging.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The coil voltage for the EE2-3TNUH-L relay is 3 VDC.
The EE2-3TNUH-L relay has a contact rating of 2 A.
The EE2-3TNUH-L relay has a DPDT (2 Form C) contact form.
The operating temperature range for this relay is -40°C to 85°C.
Yes, the EE2-3TNUH-L relay is RoHS3 Compliant.
