| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,540 pcs
|
1540 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Forward Voltage | |
| Mounting Type | |
| Output Type | |
| Response Time | |
| Reverse Current | |
| Sensing Method | |
| Tape & Reel | |
| Voltage |

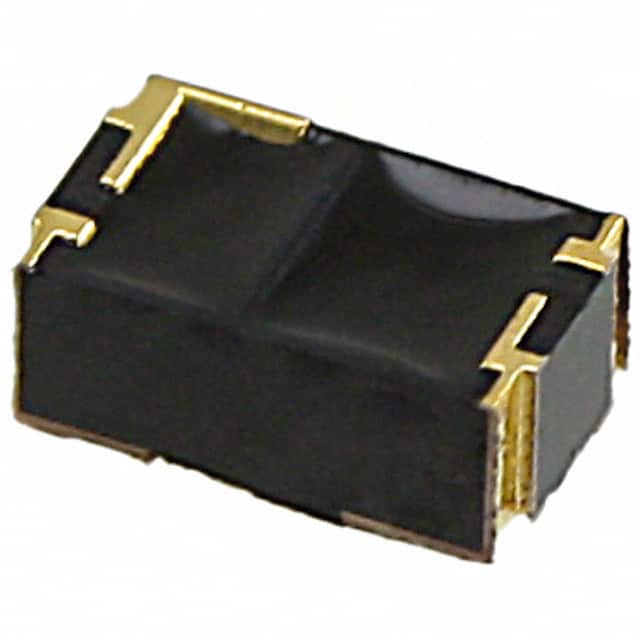

The Omron EE-SY1200 is an ultra-compact, surface-mount reflective photomicrosensor designed for various sensing applications. It features a phototransistor output and operates with a collector-emitter voltage of up to 30V and a collector current of 50mA.
Key electrical characteristics include a typical forward voltage of 1.2V at 20mA, a peak emission wavelength of 940nm, and a peak spectral sensitivity wavelength of 850nm. The sensor exhibits a typical light current of 200μA at 10mA forward current and 2V collector-emitter voltage for a 4mm sensing distance, and 150μA for a 1mm sensing distance. Dark current is typically 2nA.
With a fast response time of 30µs for both rising and falling edges, the EE-SY1200 is suitable for applications requiring quick detection. It is housed in a 4-SMD, No Lead package, designed for surface mounting.
The operating temperature range is from -25°C to +85°C, with a storage temperature range of -40°C to +100°C. Reflow soldering is supported up to 240°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The collector-emitter voltage is rated up to 30 V.
The EE-SY1200 is in a 4-SMD, No Lead package.
The operating temperature range is -25°C to +85°C.
Yes, the RoHS status is RoHS3 Compliant.
The typical light current is 200 μA when IF = 10 mA and VCE = 2 V.
The rising and falling times are both 30µs.
