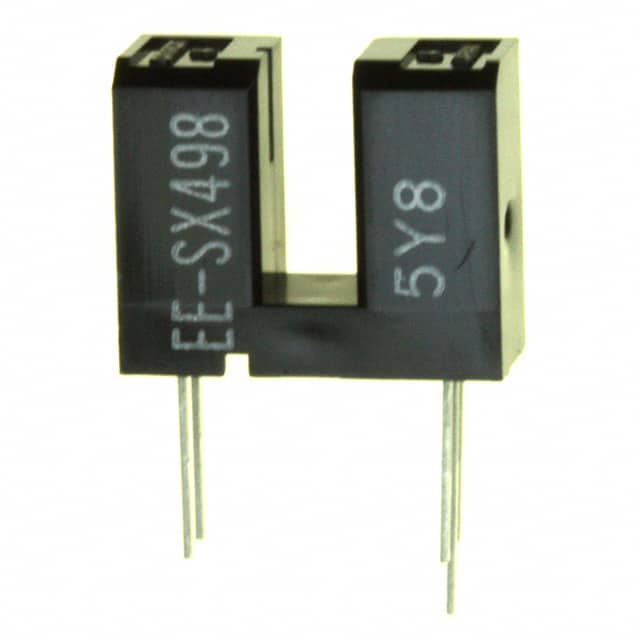

EE-SX498 The Omron EE-SX498 is a transmissive optical switch with a 3mm slot width and NPN open collector output. It operates within a 4.5V to 16V supply voltage range.
Mfr Part #:

EE-SX498

Available from 1 distributors
Mfr Name: Omron
Omron
The Omron EE-SX498 is a transmissive optical switch with a 3mm slot width and NPN open collector output. It operates within a 4.5V to 16V supply voltage range.
✓ Total Stock: 102 pcs
$ Price Range: $0.50

EE-SX498 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
102 pcs
On Request
102 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EE-SX498 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Failure Rate
Forward Current
Height
Length
Mounting Style
Mounting Type
Number of Channels
Operating Temperature
Output Configuration
Output Type
Power Dissipation
Reverse Current
Sensing Distance
Sensing Method
Storage Temperature
Tape & Reel
Termination Style
Voltage
Wavelength
Width
View Similar Products (0)

EE-SX498 Description

Short technical summary and product information.

The Omron EE-SX498 is a transmissive optical switch designed for PCB mounting. It features a slot width of 3mm and an aperture width of 0.5mm, enabling precise sensing.



This component operates with a supply voltage ranging from 4.5V to 16V. The output configuration is NPN with an open collector/light-on function, capable of handling a low-level output current of 16mA. Key electrical specifications include a forward current of 20mA and a power dissipation of 250mW.



Mechanically, the EE-SX498 has dimensions of 5mm length, 10mm height, and 12.2mm width. It is designed for through-hole mounting and utilizes solder pin termination. The sensing method is transmissive and slotted, with an operating wavelength of 940nm.



Environmental specifications include an operating temperature range of -40°C to 75°C. The series is identified as Ee-Sx398/498. This part is RoHS3 compliant and has an MSL rating of 1.

EE-SX498 Quick Information

Product Type: Optical Switch
Series: Ee - Sx398/498
Canonical Name: Omron EE-SX498 Optical Switch, Transmissive, Photo IC Output
Subcategory: Photoelectric Sensor

EE-SX498 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EE-SX498 Estimated Pricing

Qty Low High
1+ $0.50 $0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

EE-SX498 Features

  • Transmissive optical switch with 3mm slot.
  • NPN open collector output.
  • Operates from 4.5V to 16VDC.
  • Through-hole PCB mount design.
  • RoHS3 compliant.

EE-SX498 Applications

  • Used in object detection systems
  • Suitable for automation and control
  • Position sensing in machinery
  • Compact design for space-constrained applications

EE-SX498 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the Omron EE-SX498?

The operating supply voltage for the EE-SX498 is from 4.5 V to 16 V.

What is the slot width of the EE-SX498 optical switch?

The slot width for the EE-SX498 is 3 mm.

What is the operating temperature range for this Omron sensor?

The operating temperature range is -40°C to 75°C.

What type of output does the EE-SX498 provide?

The EE-SX498 provides an NPN output in an open collector/light-on configuration.

Is the Omron EE-SX498 RoHS compliant?

Yes, the EE-SX498 is RoHS3 Compliant.
