| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
43 pcs
|
43 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Material | |
| Flammability Class | |
| Housing Material | |
| Insulating Material | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Positions Per Level | |
| Rated Current | |
| Rated Torque | |
| Stripped Length | |
| Termination Style | |
| Test Voltage | |
| Type | |
| Voltage | |
| Wire Gauge (AWG) | |
| Wire Gauge or Range |

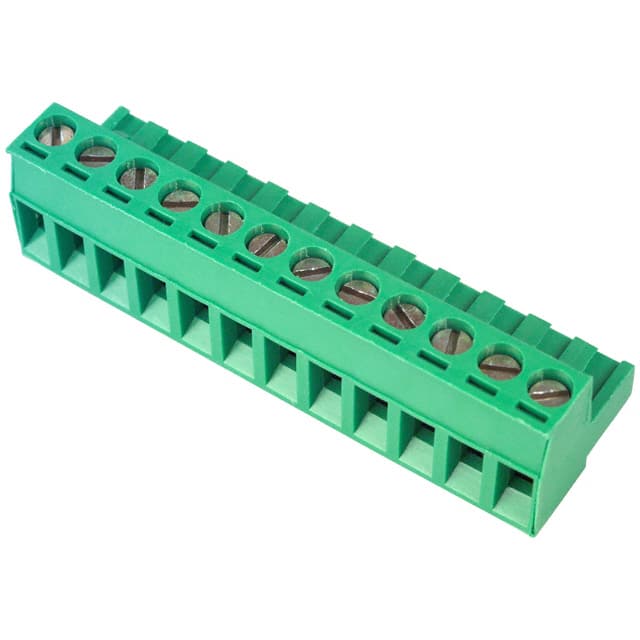

The On Shore Technology Inc. EDZ950/12 is a 12-position pluggable terminal block plug from the EDZ950 series. It features a 5.08mm pitch and a free hanging (in-line) mounting style, making it suitable for wire-to-board connections where a removable mating interface is required.
This plug is rated for 15A at 300V and accepts wire sizes from 12 to 22 AWG (up to 2.5 mm²). The screw termination style provides a reliable and secure connection for solid, stranded, and ferrule wires. The rated torque is 0.5 Nm, and the recommended stripped length is 6.0 mm.
Constructed with a PA (polyamide) insulating material rated UL94 V-0, the plug is designed for a temperature range of -30°C to 105°C. The contact material is CuSn (copper tin), and the terminal block material is CuZn (copper zinc). The housing is green in color.
The EDZ950/12 has 12 positions.
The pitch is 5.08 mm.
The rated current is 15 A.
The rated voltage is 300 V.
The mounting type is Free Hanging (In-Line).
It accepts 12-22 AWG wire.
The operating temperature range is -30°C to 105°C.
