| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15 pcs
|
15 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Material | |
| Flammability Class | |
| Insulating Material | |
| Max. Rated Cross Section (Maximum @ Solid) | |
| Max. Rated Cross Section (Maximum @ Stranded with Ferrules) | |
| Max. Rated Cross Section (Maximum @ Stranded) | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Positions Per Level | |
| Rated Current | |
| Rated Torque | |
| Rated Voltage | |
| Screw Size | |
| Stripped Length | |
| Terminal Block Material | |
| Termination Style | |
| Test Voltage | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

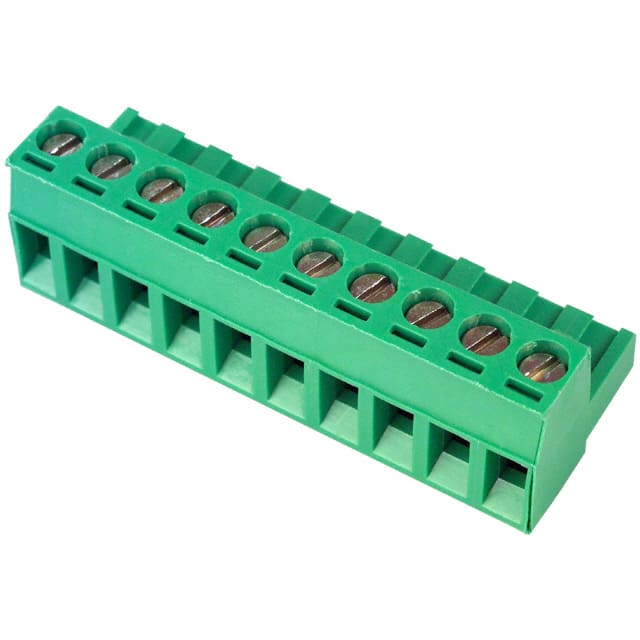

The On Shore Technology Inc. EDZ950/10 is a 10-position pluggable terminal block plug from the EDZ950 series. It features a 5.08mm pitch and a free hanging (in-line) mounting style, making it suitable for wire-to-board connections where a removable plug interface is required.
This plug is rated for 15A at 300V and accepts wire sizes from 22 to 12 AWG (up to 2.5 mm²). Termination is via M3 screw clamps with a rated torque of 0.5 Nm, and the recommended stripped length is 6.0 mm. The insulating body is made of PA (polyamide) with a UL94 V-0 flammability rating, and the operating temperature range is -30°C to 105°C.
The contacts are made of CuSn (bronze) and the terminal block material is CuZn (brass). The product is green in color and is RoHS3 compliant and REACH unaffected.
The EDZ950/10 has 10 positions.
The pitch is 5.08mm (0.200 inches).
The rated current is 15A.
The rated voltage is 300V.
The mounting type is Free Hanging (In-Line).
It accepts wire sizes from AWG 22 to 12 (up to 2.5 mm²).
The operating temperature range is -30°C to 105°C.
